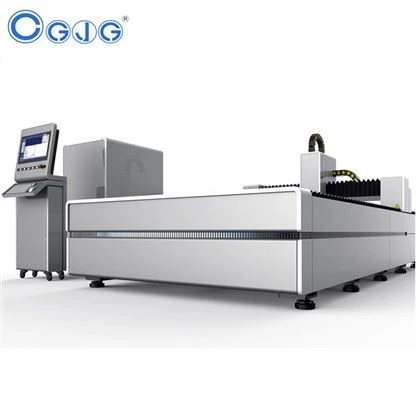

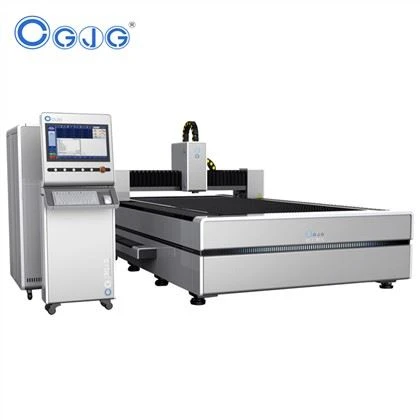

Sheet Metal Cut 1500watt 3000w 12000w Fiber Laser Cutting Machine

Product Introduction:

Our cutting-edge fiber laser technology boasts an impressive imported laser source that delivers exceptional performance. With a small laser spot, high efficiency and speed, it ensures pristine cutting quality, minimal deformation, and a smooth, beautiful finish. What's more, this top-of-the-line laser has a remarkable service life of up to 100,000 hours.

Technical Parameters:

The fiber laser cutting machine is configured to be standard and is suitable for both 1000W and 1500W. To create a highly similar content by rearranging the above information, the following can be written: The fiber laser cutting machine comes equipped with standard configuration that is ideal for both 1000W and 1500W operations.

Laser Source: MAX/RAYCUS 1000W/1500W

The cutting head used for precision cutting is the Raytools auto focus cutting head BM110. This advanced cutting head is designed to improve accuracy and efficiency in cutting operations. By utilizing auto focus technology, it allows for adjusting the focal position without any external intervention, thereby ensuring maximum precision and quality at all times. The BM110 is a highly reliable and durable cutting head that can be used in a variety of applications.

Control System: CYPCUT controller FS2000

Yaskawa Y: 850W servo motor is used in Japan for various applications. It offers a power output of 850W for the Y-axis, X-axis, and Y-axis, while the Z-axis has a power output of 400W. These servo motors provide excellent performance and precision control in industrial settings.

Hanli cooling system is a dual-temperature S&A cooling system. The system is capable of providing cooling at two different temperatures simultaneously. This technology is highly efficient and ensures optimum cooling performance.
The dual-temperature feature allows the Hanli cooling system to cater to various cooling requirements in different settings. It can easily provide cooling at two different temperature levels, making it versatile and adaptable.
With the Hanli cooling system, users can enjoy customized cooling solutions for their specific needs. Whether it is cooling sensitive equipment or maintaining a comfortable temperature in a space, this system delivers outstanding performance.
The unique design of the Hanli cooling system ensures efficient cooling with minimal energy consumption. It utilizes advanced technology to achieve cooling at two temperature levels, providing a cost-effective solution for various applications.
The reliability and durability of the Hanli cooling system make it an excellent choice for both residential and commercial use. With its dual-temperature capability, it offers flexibility and convenience, making it a preferred option in the cooling industry.
In conclusion, the Hanli cooling system is a dual-temperature S&A cooling system that provides efficient and reliable cooling at two different temperature levels simultaneously. Its versatility, cost-effectiveness, and high performance make it a leading choice in the market.

Guide rail : PMI guide rail

Rack: APEX /YYC rack

The machine bed is made of a heavy sheet that has undergone heat treatment for welding purposes.

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Key Parts:

Aviation Aluminum Gantry:

The gantry frame of the next generation has embraced the aerospace standard and is engineered with a robust composition of high-strength aluminum alloy. Through meticulous heat treatment, the beam's comprehensive strength, stiffness, and stability are effectively guaranteed.

Segmented Rectangular Welded Bed:

The internal structure of the bed adopts aircraft metal honeycomb structure, which is welded by multiple rectangular tubes. Stiffeners are arrange inside the tubes to increase the strength and tensile strength of the bed, the resistance and stability of the guide rail, to effectively avoid the deformation of the bed. High strength, stability, tensile strength, ensure the use of 20 years without deformation; The wall thickness of rectangular pipe is 10mm.

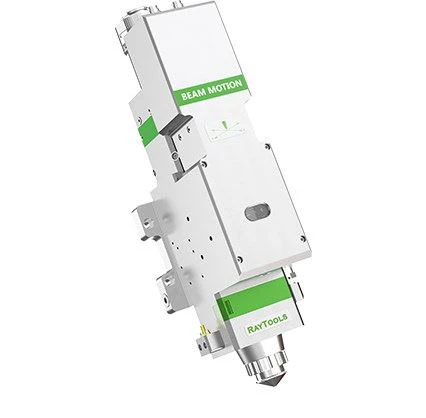

Cutting Head:

High adjustment precision and range : range+10mm~-12mm, accuracy ≤50μm, suitable for different types and thickness of metal plates.

- Fast Perforation and Automatic Cutting

- Optimized optical and water-cooling design enables the laser head to operate continuously and stably for a long time at high power.

Transmission and Precision:

CG Fiber laser cutting machine is equipped with Japan YASKAWA Servo Motor, France MOTOVARIO reducer. It makes sure that the machine positioning accuracy is ±0.02mm,and the cutting acceleration is 1.0G. The service life is more than 10 years.

Servo Driver and Motor-YASKAWA:

Adopt Japan YASKAWA motor with excellent performance，high accuracy and long service life

Gear and Rack-Taiwan Apex:

-High precision

-Strong load bearing

-High speed

-Low noise

-Long service life

Independent cabinet

New designed console

-HD display

-Removable

Independent cabinet and interface display:

All electrical components in the independent control cabinet with dust-proof design. Air condition is built-in to the independent control cabinet with automatic constant temperature, which can avoid high temperature damage the electrical components.

HD display is convenient to operate with low power consumption,high resolution and brightness,fast response and simple interface operation.

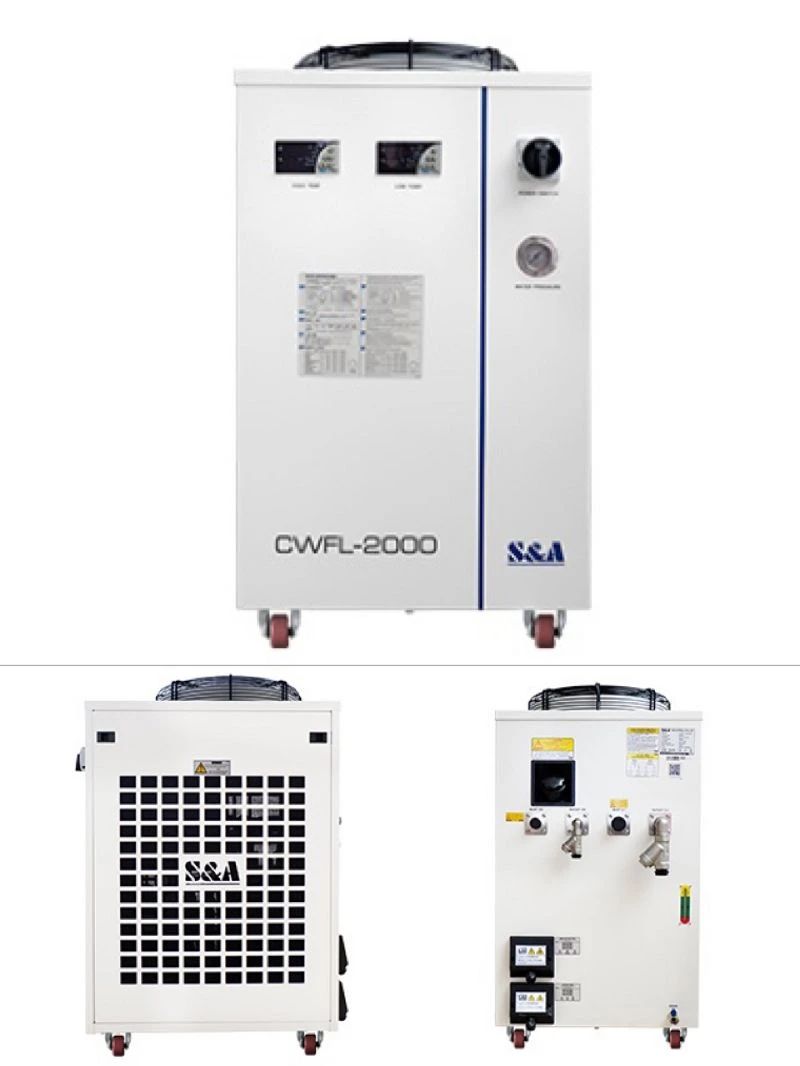

Water Chiller--S&A :

Dual cooling function,real time alarm,machine protection,can switch to intelligent temperature control mode.

Cutting Material and Range

For cutting a variety of materials, mainly used in carbon steel, stainless steel, a variety of aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, a variety of alloy plates, rare metals and other metal materials of two-dimensional flat cutting.

Cutting Range：

Carbon Steel: 0.5-16mm

Stainless Steel: 0.5-5mm

Aluminum alloy:0.5-5mm

Brass: 0.5-3mm

Cutting Samples

Application Area

Widely used in household appliance, sheet metal chassis frame, hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries.
