Product Introduction:
The excellent load-bearing capacity of the lathe bed on the worktable can be attributed to the usage of square tubes that are joined together through welding after undergoing stress relieving.
The machine, meanwhile, possesses the following benefits simultaneously:
good dynamic performance
High-precision cutting
Small deformance and smooth beatiful appearance
Technical Parameters:
Machine Model | CG-4015 |
Working area | 4000mm*1500mm（Optional） |
Laser power | 1000W~6000W |
Repeat positioning accuracy | ±0.02mm |
Max. acceleration | 1.0G |
Maximum speed | 90m/min |
Specified voltage and Frequency | 380V 50Hz/60Hz/60A |
Color | White +Gray |
Logo | Customized Service |
Z Travel | 100mm |
Key Parts:
Aviation Aluminum Gantry:
Our gantry is constructed using an aluminum alloy that is aerospace-grade, reducing the weight by 50% compared to our previous models. This weight reduction does not come at the expense of strength, stiffness, or stability, all of which have been significantly improved. Our engineers have ensured that these properties are not compromised by the use of lightweight materials, resulting in a gantry that is both durable and effective.
Segmented Rectangular Welded Bed:
Our worktable is built with high-quality square tube welding machines and undergoes stress relief annealing treatment to ensure its durability and strength. Thanks to its robust design, it can support up to 1500kg and features universal ball bearings for smooth operation. The machine also comes equipped with a peripheral clamping device located outside the worktable, along with fully enclosed dust-proof components, and precision positioning elements like photoelectric sensors to ensure outstanding transmission accuracy.
Cutting Head:
With an optimized optical configuration and a design that promotes smooth and efficient airflow, this system guarantees exceptional precision and remarkable stability. Its extensive focusing range allows for increased perforation focal length, while separate settings for perforation and cutting focal lengths further enhance cutting accuracy.

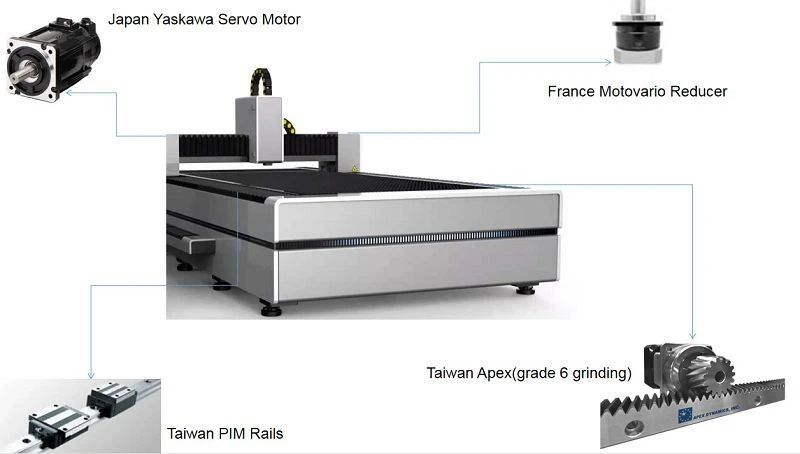

Transmission and Precision:
The CG Fiber laser cutting machine guarantee unparalleled precision and longevity. With the incorporation of top-notch components like the Japan YASKAWA Servo Motor and France MOTOVARIO reducer, this machine ensures exceptional accuracy with a positioning accuracy of ±0.02mm. Moreover, its cutting acceleration reaches an impressive 1.0G. Thanks to the high-quality construction, this cutting machine boasts a service life of over 10 years.
Servo Driver and Motor-YASKAWA:
We highly recommend adopting YASKAWA motors from Japan as they provide excellent performance and do not require any adjustment. These motors are designed for real-time use and come with an automatic tuning function. They are known for their exceptional quality and reliability.
Gear and Rack-Taiwan Apex:
Our superior gearbox technology is characterized by exceptional precision and high transmission efficiency. With accurate instantaneous transmission ratio, our gearboxes provide reliable and long-lasting performance. Experience exceptional service life with our advanced gearbox technology.
Water Chiller--S&A:
The fiber laser source and optical lens are effectively cooled by a High Power industrial water cooling system, which ensures optimal performance and longevity. This advanced cooling system is specifically designed to handle the heat generated by the laser source and lens, keeping them within their operating temperature range. By utilizing water as a coolant, it efficiently dissipates heat and maintains stable conditions for reliable laser output. This superior cooling solution plays a vital role in enhancing the overall efficiency and performance of industrial laser systems.
Cutting Material and Range
For cutting a variety of materials, mainly used in carbon steel, stainless steel, a variety of aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, a variety of alloy plates, rare metals and other metal materials of two-dimensional flat cutting.
Cutting Range：
Carbon Steel: 0.5-16mm
Stainless Steel: 0.5-5mm
Aluminum alloy:0.5-5mm
Brass: 0.5-3mm
Cutting Samples
Application Area
It is widely used in electrical manufacturing, electric cabinet, high-resolution device, mechanical device, electrical equipment, advertising signs, auto parts, display equipment and hardware processing.
