Product Description
Brief Intro

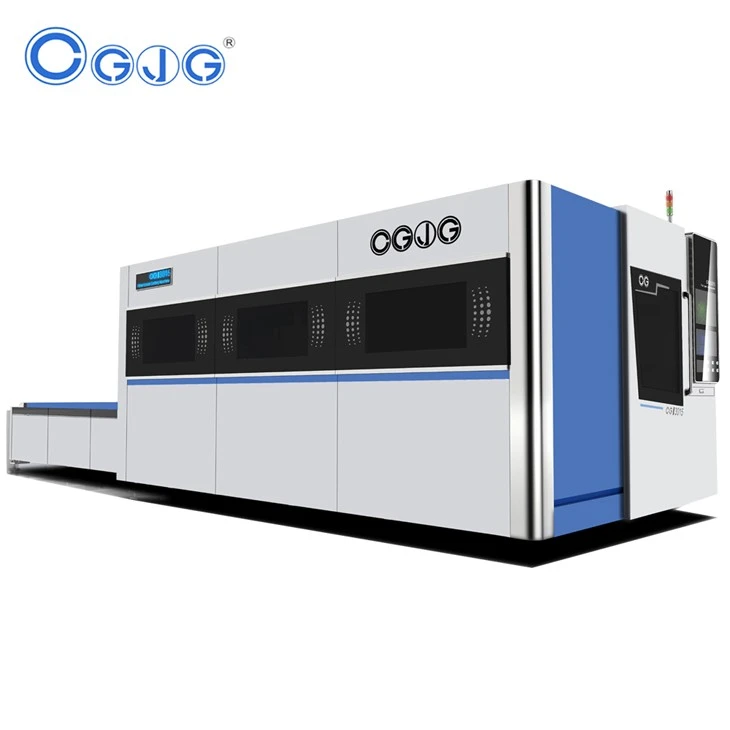

The laser cutting machine is specifically designed with a protective cover case and an exchange table. Its main purpose is to efficiently process various types of metal plates, including copper, carbon steel, aluminum, and stainless steel. The machine is versatile and can accommodate laser sources ranging from 1KW to 20KW. In comparison to the traditional open type laser cutting machine, this particular model offers enhanced operator safety by providing a protective enclosure during the cutting process. Additionally, it offers a convenient space for operators to collect the finished products and load new cutting materials from the backside while the machine is functioning within the protective case. This design ensures both the operator's safety and the uninterrupted workflow of the cutting process.
Model | CG-3015 |
Effective Cutting Area | 3000mm * 1500mm |
Exchange Worktable Cutting Area | 3000mm * 1500mm |
Suitable Laser Power | 1KW - 6KW |
Laser Source | Raycus(can be replaced to IPG, MAX or other brand) |
Control System | CYPCUT |
Cooling Method | Water Cooling |
Machine Bed Material | Heavy Steel Plate through Welding |
Accuracy(mm) | ±0.03mm/m |
Mechanical Repeatability | ±0.02mm/m |
Typical Application of Laser Cutting Machine
The laser cuting machine is widely used in precision engineering such as medical supply, automotive industry, aviation industry, marine egineering and general manufacturing.
Detailed Photo
The front view
The back view
Before installing the electric component and controlsystem
Building the structure for the cover case
Packing and Shipping
Packaging:
Three layers
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material;
-The outermost layer is winding up with PE stretch film.
Shipping:
We cooperate with SINOTRANS company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
