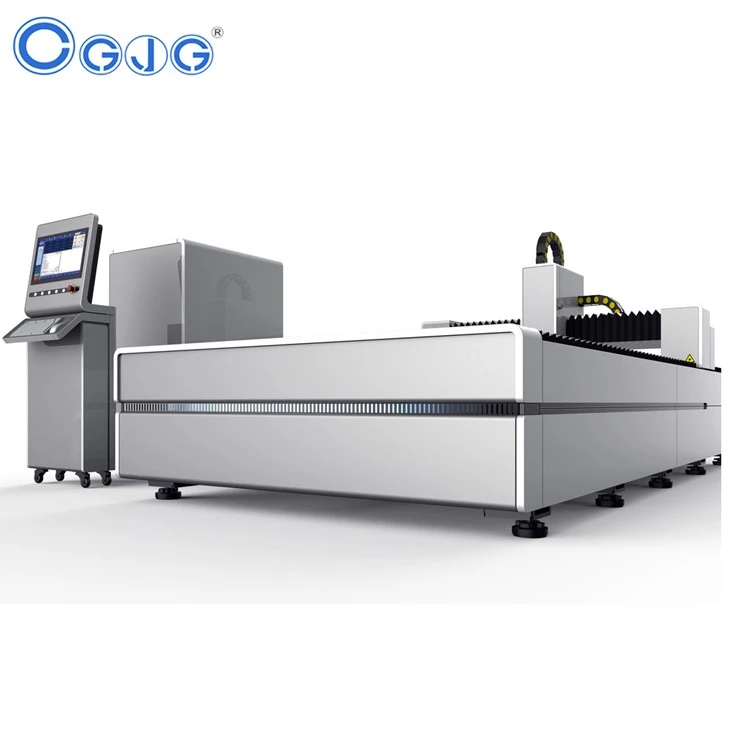

Product Introduction:
Through the optical path system, the laser cutting machine effectively concentrates the laser into a high-power density laser beam. By directing this laser beam onto the surface of the workpiece, the machine is able to elevate the temperature of the workpiece either to its melting point or boiling point. Simultaneously, a high-pressure gas, aligned with the laser beam, works in tandem to eliminate any molten or gasified metal from the area of focus.
Technical Parameters:

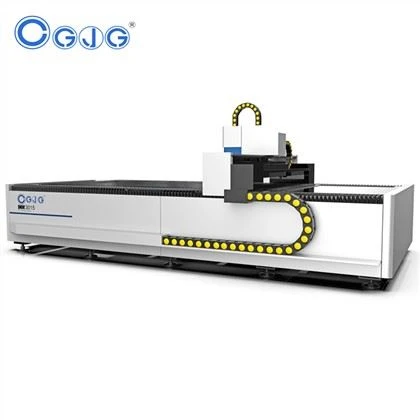

Machine Model | CG-3015 |
Working area | 3000mm*1500mm（Optional） |
Laser power | 1000W~6000W |
Positioning Accuracy | ±0.03mm |
Repeat positioning accuracy | ±0.02mm |
Max. acceleration | 1.2G |
Maximum speed | 140m/min |
Specified voltage and Frequency | 380V 50Hz/60Hz/60A |
Color | White +Gray |
Logo | Customized Service |
Z Travel | 120mm |
The fiber laser cutting machine configuration that we offer is perfect for those looking for a standard option that can handle a power range of 2000W to 3000W. You can rely on its high performance and precision to meet your cutting needs.
Laser Source: MAX/RAYCUS 2000W/3000W
The BM111 auto focus cutting head from Raytools is an excellent choice for precision cutting. With its advanced technology, it ensures accurate and efficient results. If you're looking for a reliable cutting head, the Raytools BM111 is the way to go.
Control System: CYPCUT controller FS2000
Yaskawa Japan manufactures servo motors with power ratings of 1300W for the Y-axis, 850W for the X-axis, and 400W for the Z-axis.
Introducing a cutting-edge cooling system - the S&A/Hanli dual-temperature system. This innovative technology will provide you with two different temperature settings for maximum efficiency and convenience. Trust us, you won't find anything quite like it on the market!
Guide rail : PMI guide rail
Rack: APEX /YYC rack
The machine bed is made of a strong sheet metal that has undergone a heat treatment process. It has been welded together to form a solid structure that is capable of supporting heavy loads.
Gantry : Aluminium gantry
Reducer: MOTOVARIO reducer
Automatic lubrication system
Computer: Industry computer
Key Parts:
Aviation Aluminum Gantry:
Exclusive technology machine body, stiffeners are arranged inside the tubes to increase the strength and service life
Compared with the previous products, the new generation has the advantages as following:
Half weight less than previous
Fast speed of cutting
Good toughness
Segmented Rectangular Welded Bed:
The machine is equipped with automatic lubrication device, the cutting area is equipped with partition dust removal device, and the bottom of the cutting area is equipped with garbage truck, which can extract and clean garbage regularly.
Cutting Head:
Optimized optical configuration and smooth and efficient airflow design ensure high precision and strong stability, large adjustment range and long service life.
Auto focus possible
The focal length is controlled by the operating system. We do not need to adjust it manually, which effectively avoids errors or faults caused by manual operation
The optimized optical configuration and smooth and efficient air flow design ensure high precision, strong stability, large focusing range and long service life
Transmission and Precision:
CG Fiber laser cutting machine is equipped with Japan YASKAWA Servo Motor, France MOTOVARIO reducer. It makes sure that the machine positioning accuracy is ±0.02mm,and the cutting acceleration is 1.0G. The service life is more than 10 years.
Servo Driver and Motor-YASKAWA:
Adopt Japan YASKAWA motor with excellent performance，high accuracy and long service life
Laser Source:
Cutting Material and Sample:
Specially for stainless steel, carbon steel, galvanized plate, many kinds of alloy, etc. If you want to cut high reflection metal materials, such as brass, copper, aluminum etc. We can customize the metal cutting machine according to your demands.
Application Area
Application Industries:Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc
