Metal Fabrication 3015 1kw 2kw 3kw Brass Stainless Steel CNC Laser Cutting Machine

CGJG Laser is a renowned manufacturer of professional laser equipment. Our F3015 Series open type fiber laser cutting machine is specifically designed for precise sheet metal processing. It is highly efficient in cutting various metals including stainless steel, carbon steel, and brass. With its elegant appearance and user-friendly operation, it has gained immense popularity among our customers.
We offer a wide range of laser sources, including IPG, RAYCUS, and MAX, allowing you to choose based on your specific requirements. The fiber laser power options range from 1KW to 6KW, ensuring a significant cutting ability. Moreover, our machines are known for their stable performance and an impressive lifespan of over 100,000 hours.
To guarantee superior quality, our CGJG fiber laser cutting machines are equipped with top-notch components. These include Japanese Yaskawa motors, French Motoreducers, and Taiwan APEX racks. With a positioning accuracy of 0.02mm and a cutting acceleration of 1G, our machines deliver exceptional precision. The working life of our cutting machines can extend up to 10 years.
Choose CGJG Laser for cutting-edge technology, durability, and unparalleled performance in the field of fiber laser cutting equipment.

The standard configuration of the Fiber Laser Cutting Machine is specifically designed to accommodate a power capacity of 1000W. To provide you with a similar but rearranged content, I can share the following:
The Fiber Laser Cutting Machine is equipped with a standard configuration that makes it suitable for laser cutting applications requiring a power capacity of 1000W. This carefully designed setup ensures optimal performance and precision during the cutting process. With this configuration, the machine is capable of efficiently handling various types of materials and delivering high-quality results.

Laser Source: MAX/RAYCUS 1000W

The cutting head used for this machine is the Raytools auto focus cutting head BM110. This advanced cutting head ensures precise and efficient cutting, making it ideal for various applications. With its automatic focusing feature, the BM110 can adjust the focal length based on the material being cut, resulting in clean and accurate cuts. If you are looking for a cutting head that can provide reliable performance and high-quality results, the Raytools BM110 is an excellent choice.

Control System: CYPCUT controller FS2000

The servo motor used in this application is a Yaskawa model with a power output of 850W for the Y-axis, 850W for the X-axis and 400W for the Z-axis. These high-quality motors are manufactured in Japan and provide excellent performance and reliability for a wide range of motion control applications. Whether you need precise positioning, fast movement speeds or smooth operation, these servo motors are an excellent choice for your automation needs. With their advanced design and advanced control algorithms, you can be sure that your motion system will perform at its best with Yaskawa servo motors.

The cooling system used in S&A/Hanli is specifically designed to cater for dual-temperature requirements. This means that the system has the capacity to manage two distinct temperature limits simultaneously. If you want a system that can cater for multiple temperature requirements, then this is the ideal choice for you. S&A/Hanli cooling system is reliable and efficient, enabling you to maintain the desired temperature levels in your premises. With this cooling system, you can manage your space without having to invest in multiple systems for different temperature ranges.

Guide rail : PMI guide rail

Rack: APEX /YYC rack

The machine bed is constructed using a heavy sheet and undergoes a heat treatment process to ensure its durability. The bed is also welded together to form a stable and strong base for the machine.

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Technical Parameter:

Machine Details:

Switzerland Raytools Laser Head

Switzerland Brand , Good quality .Raytools is most popular as NO.1 on the world. Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses. protective lens can carefully protect key components.

• Raycus Laser Source

Raycus is largest manufacturer of laser source in China , can cut carbon steel , stainless steel and aluminium etc . Good quality and long life . Suitablef for 24 hours continuous working .

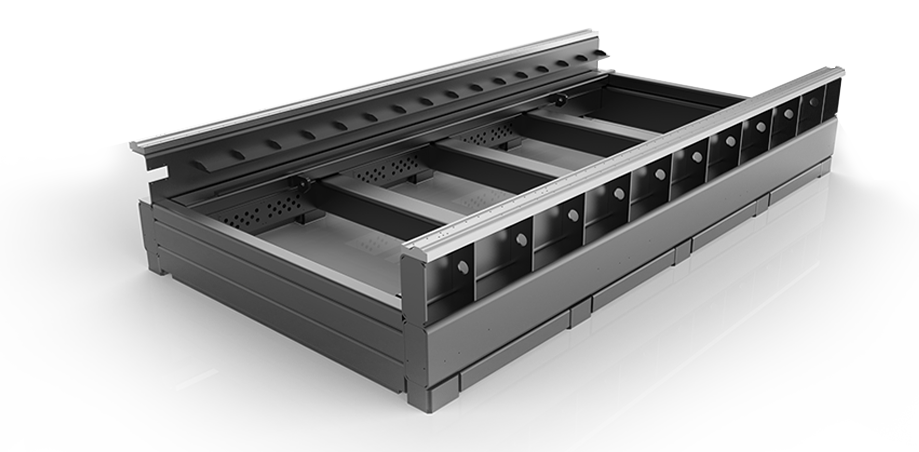

Strong Welding Machine Body

High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.

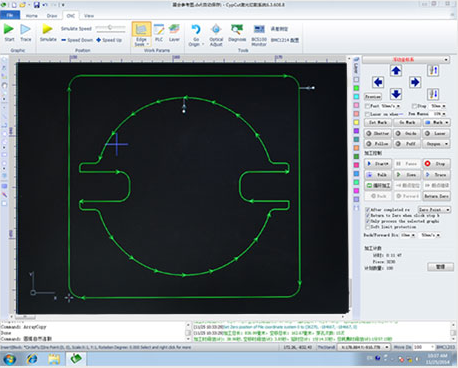

Cypcut Control System

The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhances the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.

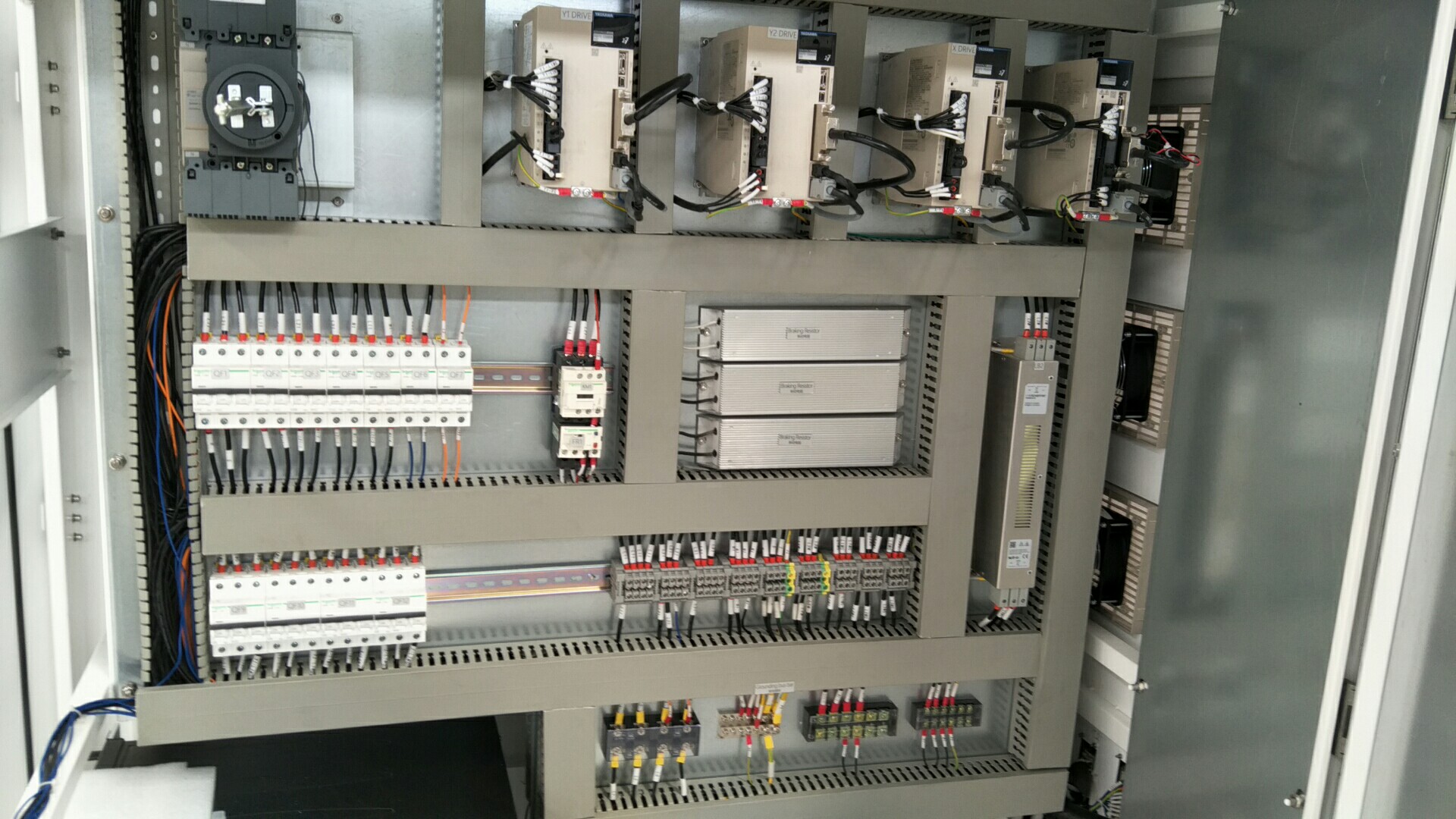

Japan YASKWA Servo Driver

1. Adopting Japan Yaskawa servo motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.

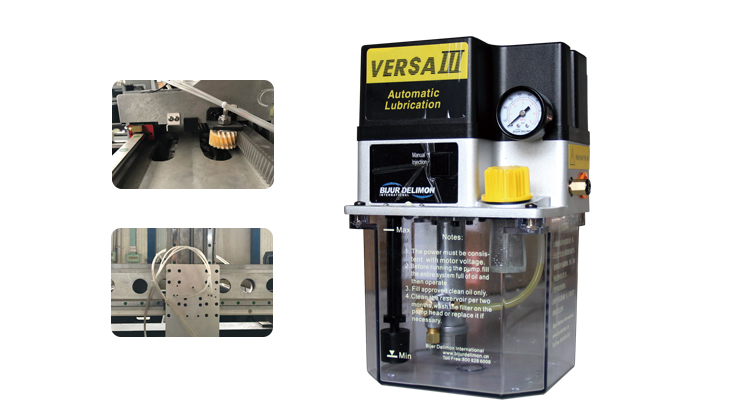

Automatic Oil Lubrication System

The automatic oil lubrication system automatically lubricates the guide rail, slider, rack and gear. It can be set by the time and travelled distance. All running parts with oil,  prolong their working life, effectively prolongs the life of the machine and reduces wear.

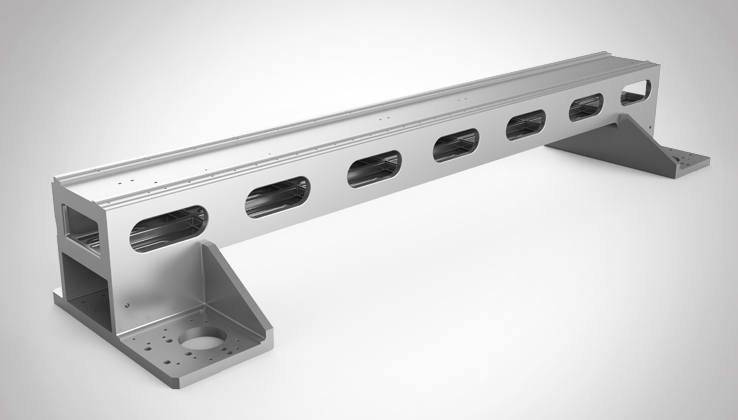

Cast Aluminum Integrated Beam

The whole structure is made of steel die casting, which is finished after artificial aging and solid solution treatment， so that the beam rigidity, surface quality, integrity and other performance are all excellent. At the same time, it has the characteristics of high flexibility, which can achieve high-speed cutting of all kinds of graphics under the condition of satisfying the precision.

Industry Applications:

F3015 fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

Cutting Capacity

Product Feature:

1.Carbon Steel Welded Stronger Bed.

2.Value and Accessibility.

3.High Speed High Efficiency.

4.1KW-6KW IPG/RAYCUS/MAX Laser Source.

5.Single Work Table Open Design.

6.Elegant Simple Design Sheet Metal.

7.Independent Control Cabinet.

8.Aviation Aluminum Gantry.

Honor Certificate:

FAQ:

Q1:Where is your factory located?

We are in Jinan city of China, 30 mins from Jinan Yaoqiang airport.

Q2:How can I get a sample to check your quality?

We can cut samples from your design and send to you.

Q3:How long can I expect to get the sample?

Genrally in 3-10 days after laser cutting.

Q4:Packaging & Shipping

Wood case and protection film.

4 sets 3015 Single table in 40 foot container.

Q5:What about the lead time for mass production?

Usually 30 days depends on fiber laser cutting machine type.

Q6:Does your product have warranty service? How long is the warranty period?

2-year warantry for fiber laser cutting machine.

Q7:How to provide technical support to customers?

We provide after sales service and technical training.We committed to provide customers a good purchasing experience.

Q8:How to become your overseas agent?

We are very glad to cooperate with you as our agent, we will provide more preferential policies.
