Product Introduction:
By implementing a professional CNC control system that incorporates an active anti-collision function, production processes can be greatly enhanced in terms of intelligence and operational efficiency. This advanced system ensures smooth operation by preventing collisions and reducing the risk of errors. It brings intelligence to the production floor, as it can detect and respond to potential collisions in real-time. With the active anti-collision function, the system intelligently adjusts toolpaths to avoid any accidental clashes, resulting in improved safety and productivity. With this innovative technology, manufacturers can optimize their production processes and achieve higher levels of efficiency and precision.
With industry-leading technologies like fast perforation, slag-free cutting, sharp corner cutting, and stable cutting of thick plates, we can assure you of high-quality cutting. Our advanced techniques guarantee precision and efficiency in every cut. By prioritizing fast perforation, we minimize any delays and improve overall productivity. Our slag-free cutting method ensures clean and smooth edges, eliminating the need for additional finishing processes. Moreover, our sharp corner cutting technique enables us to execute intricate designs with utmost accuracy. We understand the importance of stability when it comes to cutting thick plates, and our machinery is specifically designed to deliver consistent and reliable performance. Trust in our expertise and state-of-the-art equipment for all your cutting needs.
Technical Parameters:
Machine Model | CG-C4020 |
Working area | 4000mm*2000mm(Optional) |
Laser power | 1000W~6000W |
Repeat positioning accuracy | ±0.02mm |
Max. acceleration | 1.4G |
Maximum speed | 140m/min |
Specified voltage and Frequency | 380V 50Hz/60Hz/60A |
Color | White+ Gray |
Logo | Customized Service |
Z Travel | 300mm |
Warranty of core component | 3 Years |
Key Parts:
Working Platform:
The exchange time is less than 15 seconds and there are two equipped platforms.
Aviation Aluminum Gantry:
The gantry frame of the latest generation has been manufactured according to aerospace standards, using top-quality aluminum alloy. The beam has undergone rigorous heat treatments to achieve optimal strength, stiffness, and stability. As a result, the overall structural integrity of the gantry frame is unparalleled.

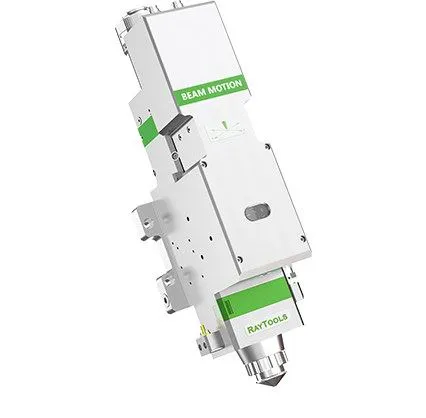

Cutting Head:
We have recently acquired an advanced laser cutting head that offers exceptional performance and efficiency. Its specialized features make it a valuable addition to our equipment.
There is a non-contact capacitance sensor available that can automatically detect the exact position of a plate. This sensor eliminates the need for physical contact and provides accurate measurements. By rearranging the information, a similar content can be generated.
With the auto-focus feature, there is no need to manually adjust the focus when changing sheets. The technology eliminates the hassle of refocusing and ensures that image quality remains consistent throughout. This advanced function makes the process of replacing sheets much smoother and effortless for users. By relying on the auto-focus feature, users can focus on the task at hand without worrying about the technicalities of adjusting the lens. Overall, this innovative feature enhances the user experience and helps to increase productivity by streamlining the workflow.
With Zoom drilling technology, it is now possible to reduce the perforation time of thick plate by 2~3 times. This breakthrough innovation offers a faster and more efficient way of drilling through thick plates that previously required much more time. By utilizing the power of Zoom drilling, industries can now improve their production rates and overall efficiency, saving both time and money. By leveraging this cutting-edge drilling technology, businesses can stay ahead of the competition and continue to produce high-quality products at a faster rate.
Cutting conditions can be effectively monitored with the help of temperature and air pressure detection. Real-time monitoring can be achieved with this setup to ensure smooth operation and optimal results. By keeping an eye on these factors, it's possible to maintain precision and accuracy throughout the cutting process.
To ensure stable cutting over extended periods of time, it is necessary to implement focus compensation and control focus shift. This involves adjusting the focus to compensate for any deviations and ensuring that the cutting remains consistent. By carefully managing these factors, it is possible to achieve reliable cutting performance for a wide range of applications. Through ongoing monitoring and adjustments, it is possible to further improve the effectiveness of the cutting process and minimize any potential errors or inconsistencies. With the right approach and attention to detail, it is possible to achieve exceptional cutting results that meet even the most demanding requirements.
Servo Driver and Motor-YASKAWA:
YASKAWA motors from Japan are recommended for adoption due to their high synchronous performance. These motors offer an exceptional control response time, reaching down to microseconds. This control method provides several advantages, including fast response time and excellent anti-interference ability. It ensures the synchronization and stability of machine tools even at high speeds, significantly extending the service life of both the machine tool and the servo motor.
Independent cabinet and interface display:
Simple interface operation is made convenient by the smart HD display.
The electrical components can be protected from high temperature damage with the help of an internal air conditioning system installed in the dust-proof electrical control cabinet. This prevents any harm to the components due to excess heat and ensures their longevity.
Taiwan Gear & Apex and S&A Water Chiller:
Famous Brand make sure the long life.
Cutting Material and Range:
For cutting a variety of materials
Carbon Steel: 0.5-35mm
Stainless Steel: 0.5-8mm
Aluminum alloy:0.5-5mm
Brass: 0.5-3mm
Cutting Samples
Application Area

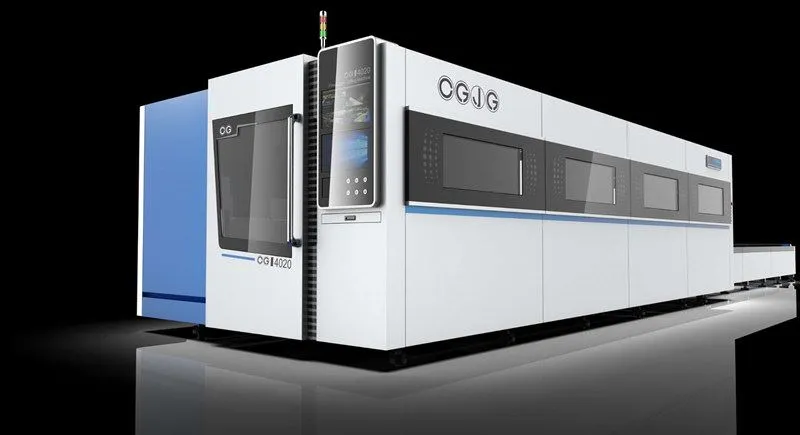

The machine power of CG-4020 Whole Enclosure Exchange Table can reach 6000W,which is an ideal choice of thick plate cutting. Widely used in Agricultural machinery,textile machinery,food machinery ,engineering machinery and other large machinery and equipment manufacturing industries. Suitable for cutting stainless steel,carbon steel,silicon steel,galvanized sheet,electrolytic sheet,aluminum alloy,titanium alloy and other metals.
