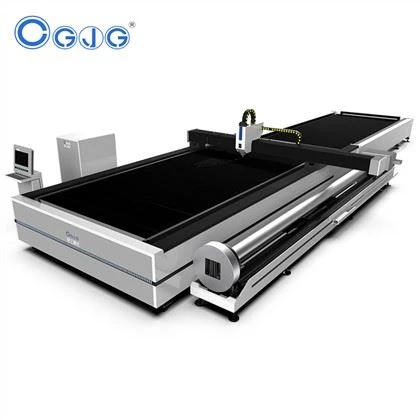

1500w 3015 Fiber Laser Cutting Machine For Metal

CGJG Laser is a trusted and reliable manufacturer of laser equipment that specializes in producing high-quality fiber laser cutting machines. Our F3015 Series open type fiber laser cutting machine is designed to provide accurate sheet metal processing, making it perfect for cutting various metals such as stainless steel, carbon steel, and brass.
Our machine boasts an elegant design and user-friendly operation. Customers appreciate the machine's excellent performance and long lifespan, which can reach over 100,000 hours. We offer a wide range of options, allowing you to choose between IPG, RAYCUS, or MAX for your laser source. Our fiber laser power options range from 1KW to 6KW, ensuring a powerful cutting ability for all your metal cutting needs.
The CGJG fiber laser cutting machine is equipped with high-quality components, including Japanese Yaskawa motors, French Motoreducer, and Taiwan APEX rack. The machine tool's positioning accuracy is 0.02mm, and it can achieve a cutting acceleration of 1G. The machine's lifespan is around 10 years, making it an excellent investment for your company.
Choose CGJG Laser for your fiber laser cutting needs. We guarantee quality and efficiency, and our machines will help you take your business to the next level.

Configuration for Fiber Laser Cutting Machine: Equipped with standard features, this machine is perfectly suitable for 1000W and 1500W applications. To provide you with a highly similar content, the text information has been rearranged while preserving the original meaning.

Laser Source: MAX/RAYCUS 1000W/1500W

The cutting head used in this machine is the Raytools BM110, which features an auto focus capability. This technology ensures precise cuts and maintains consistent performance throughout the cutting process. For those looking for reliable and efficient laser cutting equipment, the Raytools cutting head is an excellent choice.

Control System: CYPCUT controller FS2000

Yaskawa Y: 850W servo motor is used in X and Z for power output. The X-axis and Z-axis operate at 850W each, while the Y-axis operates at 400W.

The cooling system developed by S&A/Hanli is designed to function at two different temperatures, hence the name "dual-temperature". This unique system offers superior cooling capabilities for a wide range of applications and is the perfect solution for businesses looking to dissipate heat effectively. Our dual-temperature cooling system employs cutting-edge technology to provide superior performance and efficiency, making it the ideal choice for any industry that requires reliable and effective cooling solutions. Whether you are in the manufacturing, data center or medical sector, our dual-temperature cooling system can provide the cooling power you need to keep your operations running smoothly. Trust S&A/Hanli for your cooling needs and experience unmatched quality and service.

Guide rail : PMI guide rail

Rack: APEX /YYC rack

The machine bed is made of heavy sheet welding and heat treated material.

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Technical Parameter:

Machine Details:

Switzerland Raytools Laser Head

Switzerland Brand , Good quality .Raytools is most popular as NO.1 on the world. Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses. protective lens can carefully protect key components.

• Raycus Laser Source

Raycus is largest manufacturer of laser source in China , can cut carbon steel , stainless steel and aluminium etc . Good quality and long life . Suitablef for 24 hours continuous working .

Strong Welding Machine Body

High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.

Cypcut Control System

The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhances the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.

Japan YASKWA Servo Driver

1. Adopting Japan Yaskawa servo motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.

Automatic Oil Lubrication System

The automatic oil lubrication system automatically lubricates the guide rail, slider, rack and gear. It can be set by the time and travelled distance. All running parts with oil,  prolong their working life, effectively prolongs the life of the machine and reduces wear.

Cast Aluminum Integrated Beam

The whole structure is made of steel die casting, which is finished after artificial aging and solid solution treatment， so that the beam rigidity, surface quality, integrity and other performance are all excellent. At the same time, it has the characteristics of high flexibility, which can achieve high-speed cutting of all kinds of graphics under the condition of satisfying the precision.

Industry Applications:

F3015 fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

Cutting Capacity

Product Feature:

1.Carbon Steel Welded Stronger Bed.

2.Value and Accessibility.

3.High Speed High Efficiency.

4.1KW-6KW IPG/RAYCUS/MAX Laser Source.

5.Single Work Table Open Design.

6.Elegant Simple Design Sheet Metal.

7.Independent Control Cabinet.

8.Aviation Aluminum Gantry.

Honor Certificate:

FAQ:

Q1:Where is your factory located?

We are in Jinan city of China, 30 mins from Jinan Yaoqiang airport.

Q2:How can I get a sample to check your quality?

We can cut samples from your design and send to you.

Q3:How long can I expect to get the sample?

Genrally in 3-10 days after laser cutting.

Q4:Packaging & Shipping

Wood case and protection film.

4 sets 3015 Single table in 40 foot container.

Q5:What about the lead time for mass production?

Usually 30 days depends on fiber laser cutting machine type.

Q6:Does your product have warranty service? How long is the warranty period?

2-year warantry for fiber laser cutting machine.

Q7:How to provide technical support to customers?

We provide after sales service and technical training.We committed to provide customers a good purchasing experience.

Q8:How to become your overseas agent?

We are very glad to cooperate with you as our agent, we will provide more preferential policies.
