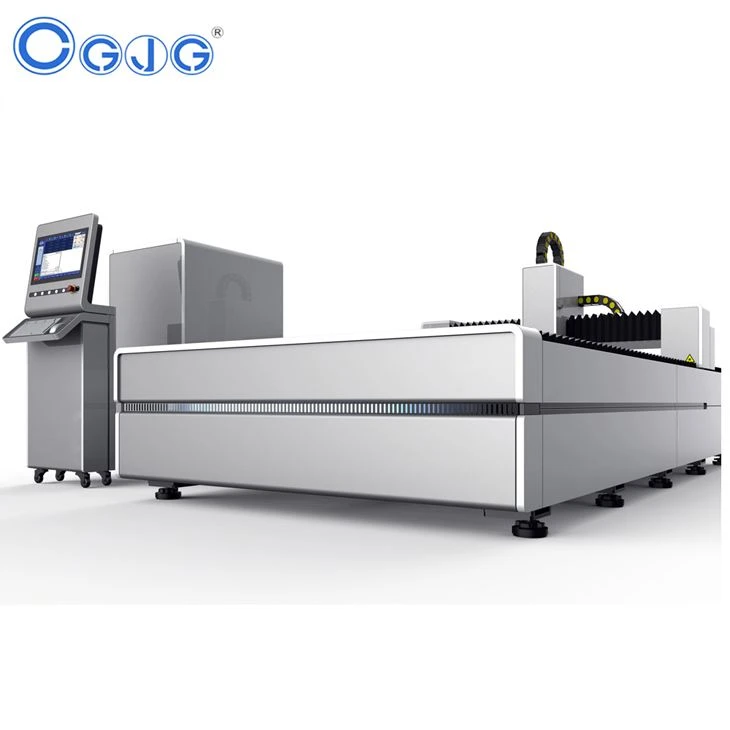

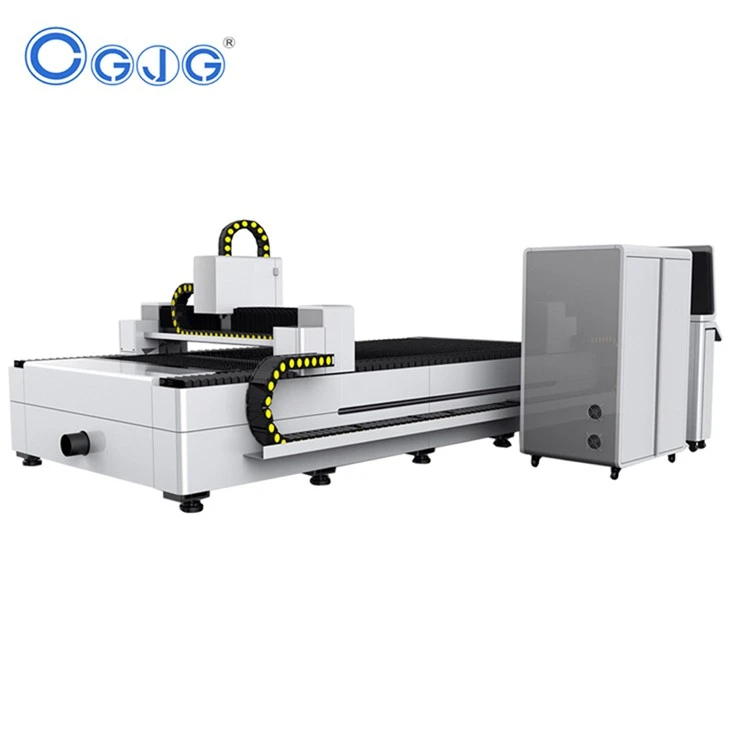

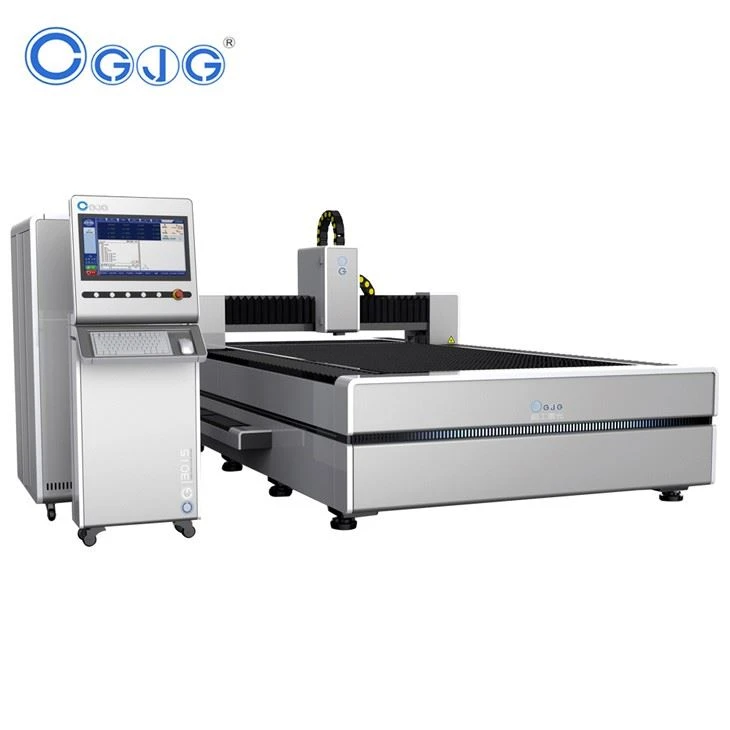

High Speed 1500W MAX IPG Laser Source Cutting Machine

Product Introduction:

By utilizing a top-of-the-line fiber laser source, our cutting process is able to achieve outstanding performance with exceptional speed and efficiency. With a small laser spot, this technology provides precise cutting quality and minimizes any deformations or irregularities in the final product's appearance. In fact, the laser source is so reliable that it has a remarkable service life of up to 100000 hours. All of these factors contribute to the superior level of excellence we are able to offer our clients.

Technical Parameters:

Configuration for Fiber Laser Cutting Machine: The standard configuration is suitable for 1000W and 1500W power options. Please provide an alternative interpretation of the given information, ensuring that the generated content is distinct from the original text.

Laser Source: MAX/RAYCUS 1000W/1500W

The BM110 auto focus cutting head from Raytools is designed to provide precise cutting capabilities. By rearranging the information, we can generate a highly similar content:
Raytools offers the cutting-edge BM110 auto focus cutting head, which ensures accurate and precise cutting.

Control System: CYPCUT controller FS2000

Yaskawa Y is a highly efficient servo motor manufactured in Japan. This servo motor model has different power capacities for each axis, with the Y-axis having a power output of 850W, the X-axis with 850W, and the Z-axis with 400W. It is a reliable and powerful motor that offers excellent performance and precision in various industrial applications. With its superior power output and Japanese engineering, the Yaskawa Y servo motor is a top choice for efficiency and accuracy in motion control systems.

The cooling system of S&A/Hanli is designed to provide dual-temperature capabilities. This means that it can efficiently cool two separate temperature ranges at the same time. To achieve this, the system is equipped with advanced technology that allows it to regulate the temperature of the cooling fluid according to the specific needs of each application. With this level of flexibility, the S&A/Hanli cooling system delivers enhanced performance and maximizes the efficiency of your processes. Whether you require precise temperature control for industrial, commercial, or scientific applications, this cooling system is the ideal solution to meet your needs.

Guide rail : PMI guide rail

Rack: APEX /YYC rack

The machine bed is constructed from a sturdy sheet that has undergone heat treatment before welding.

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Guide rail gear rack protection cover

stainless steel plate and nylon flexible tube

ABS drag chain

air tube ,electric wire, laser fiber

PMI  linear guide and gear rack

SMC Pneumatic system

Control System

cypcut 2000

1:Recognized by over 300 domestic and foreign laser companies; 2:Match up with wireless DSP controller
3:Stable operation on over 20000 sets cutting machine; 4:Able to complete from the design, draw and process; 5:Simple, efficient,
powerful and reliable
6:Wireless DSP remote control

fiber laser source

Raycus / MAX

1.direct control of all the fiber laser functions:
2.synchronized control of the laser source
3.overall power control

Auto oil lubrication system

After using some time, Rack & Pinion and guide rails always need maintained by inject oils. Make sure the machine keep moving
fluently and in good precision

Driving System.

Japan Yaskawa Servo motor1:Servo Motor with high precision; 2:Able to control cutting speed and position; 3:Stable running, lower speed
without vibration phenomenon; 4:Better overload capacity

For cutting a variety of materials, mainly used in carbon steel, stainless steel, a variety of aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, a variety of alloy plates, rare metals and other metal materials of two-dimensional flat cutting.

Cutting Range：

Carbon Steel: 0.5-16mm

Stainless Steel: 0.5-5mm

Aluminum alloy:0.5-5mm

Brass: 0.5-3mm

Cutting Samples

Application Area

Widely used in household appliance, sheet metal chassis frame, hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries.
