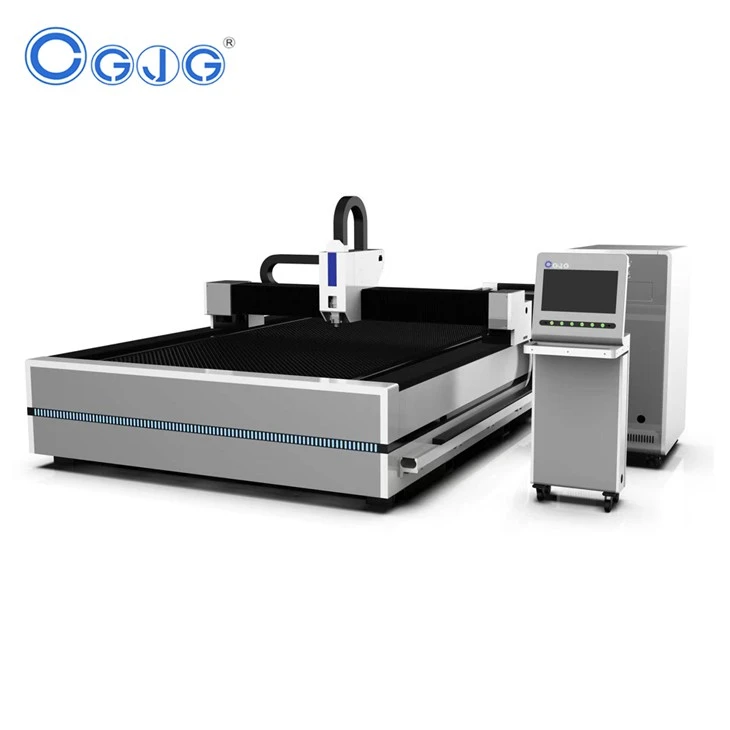

4mm Stainless Steel Metal Fiber Laser Cutting Machine

The 3015E fiber laser cutter has emerged as the top choice for customers in the metal industry in China. This exceptional machine boasts a meticulously welded bed that has undergone precise welding processes, as well as annealing and aging treatments. To further enhance its performance, the beam is made of airborne aluminium castings. Notably, this cutting-edge equipment can achieve a remarkable running speed of up to 80 m/min. Its superior qualities make it the most sought-after solution in the metal industry.

The standard configuration for our Fiber Laser Cutting Machine is ideal for use with 2000W power output. We can assure you that the generated content will be highly similar in nature to the original text, as we are committed to delivering accurate and precise information through our communications. With our state-of-the-art technology and expertise in the field of laser cutting, you can trust that our machines will meet your needs and exceed your expectations. So why wait? Contact us today to learn more about our Fiber Laser Cutting Machine and how it can benefit your business.

Laser Source: MAX/RAYCUS 2000W

Raytools BM111 is an automatic focus cutting head that is specifically designed for precision cutting. With advanced technology and innovative features, this cutting head offers enhanced accuracy and efficiency. The auto focus function ensures that the laser beam is always focused at the optimal position, resulting in clean and precise cuts. Whether you are working with metal, wood, or other materials, this cutting head guarantees excellent performance and consistent results. Upgrade your laser cutting machine with the Raytools BM111 auto focus cutting head and experience the difference in precision and productivity.

Control System: CYPCUT controller FS2000

The servo motor is manufactured in Japan and is known as the Yaskawa Y series. The motor has three different power ratings: 1300W for the Y axis, 850W for the X axis, and 400W for the Z axis. The Yaskawa Y servo motor is highly reliable and provides exceptional performance for a wide range of industrial applications. With its advanced technology and precision engineering, this servo motor is sure to meet the demands of even the most demanding industrial applications. Whether you need precise positioning or smooth motion control, the Yaskawa Y servo motor is sure to deliver the performance you need.

Dual-temperature: S&A/Hanli cooling system;

Guide rail : PMI guide rail

Rack: APEX /YYC rack

Machine bed: Heat treated heavy sheet welding machine bed;

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Sample display

Detail picture

CAST-IRON BED, ANTI-VIBRATION, STABLE, NO DEFORMATION

*The main frame adopts the gantry structure welded by all steel plates to ensure the long-term stability without deformation

*The bed is annealed at high temperature in a large annealing furnace
*The bed is formed by imported gantry milling once
*Using gantry rack double guide rail, double servo drive structure
*Improve the stability and rigidity of the Y-axis beam
*Ensure the high precision and high dynamic performance of Y-axis beam movement
*Y-axis beam runs smoothly at high speed, greatly reducing gas consumption

CYPUT CONTROL SYSTEM

*Support AI, DXF, PLT, Gerber, LXD and other graphic data formats, and accept the Cyput Laser Cutting Control System international standard G code generated by MaterCam, Type3, Wentai and other software.

*To conduct automatic optimization when opening/importing DXF and other external files, including: to remove repetitive lines, merger connected lines, remove tiny graphics as well as automatically distinguish inside and outside models and conduct sorting. The above each function can be defined, as well as be carried out manually. To support common editing and typesetting functions, including: zooming in and zooming out, translation, mirror, rotation, alignment, copying, combination and so on.

*To use the easiest way to set the lead, slotted compensation, micro
connection, bridge-connection, lead inside or outside, lead seal without gap and so on.

GEARS, RACKS, GUIDES

*The guide rail and rack are calibrated by a precision collimator with an accuracy of ±0.02mm

*Using Taiwan APEX/YYC rack, grinding on all sides. And there is a positioning pin design to prevent the rack from shifting

*Using Taiwan HIWIN guide rail, and use oblique pressure block design to prevent displacement of guide rail

SWITZERLAND RAYTOOLS AUTO-FOCUS LASER CUTTING HEAD

*AUTOFOCUS: Through the built-in drive unit of the servo motor, the focusing lens is driven by the linear mechanism to automatically change the position in the focusing range. The user can set continuous zoom through the program to complete the rapid piercing of the thick plate and automatic cutting of different materials. *EFFICIENT: Reading the saved cutting parameters through the operating system can quickly change the focus position of the laser head, eliminating manual operation and improving efficiency by 30% *STABLE: Unique optical configuration, smooth and efficient airflow design and dual water-cooled design make the laser head work stably for a long time

OPTIONAL LASER SOURCE

*Different options of famous brand laser source(Reci/Raycus/IPG), We have professional sales and technician who can suggest you the most suitable laser source, depending your target price.

*Stable performance and high cost performance *The fiber launch is stable, with long service life of nearly 100,000 hours *It can run continuously 24 hours a day to meet the requirements of industrial continuous production

We can provide team viewer and skype with cam till all of your problems solved.

Company Profile

Shandong Chaogong Laser Technology Co., Ltd. is one of the laser equipment manufacturers in Shandong Province, China. The company focuses on the R& D, manufacturing and sales of high-power laser processing equipment, including high-power laser cutting machine, laser welding machine and multi-functional laser processing equipment, to provide customers with personalized and professional laser processing system solutions. The main products of super laser cover the full power series of optical fiber laser cutting series, laser marking series, laser processing special equipment and cutting complete equipment, etc. the products are widely used in iron and steel metallurgy, non-ferrous metals, automobile and parts, aerospace, military electronics, precision instruments and meters, machinery manufacturing, hardware tools, integrated circuits, solar energy and other industries.

company's product service focuses on prevention, implements the customer return visit, continuous improvement, rapid response, efficient and accurate service mechanism to ensure the stable and efficient operation of products and help customers improve economic efficiency. The company has a complete sales and after-sales service network, marketing management center and domestic sales department, international trade department and customer service department. The sales and after-sales service network covers most cities in China, and the products are highly praised by customers.

company adheres to the business philosophy of "building brand with quality, pursuing development with science and technology, promoting step with innovation, and winning market with service". With advanced technology, the company is committed to providing global users with comprehensive laser application solutions. Chaogong is willing to work with all partners to make progress and win-win development and jointly build itself into a domestic manufacturing and R & D base for high-power laser processing complete equipment.

RFQ

Q1.how to get the most suitable machine and best price

please tell the material you want to working on?How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Then we will supply you 2-3 solution for advice.

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance,the balance prior to the shipment.

Q3.What is the producing time after order?

The production time is about 10-20 days depend on the exact machine and the quantity.

Q4.If we don't know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will

have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or what’sapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The

complete machine will be tested to make sure they can work very well before being out of factory.The testing video and pictures

will be sent to you before the delivery.
