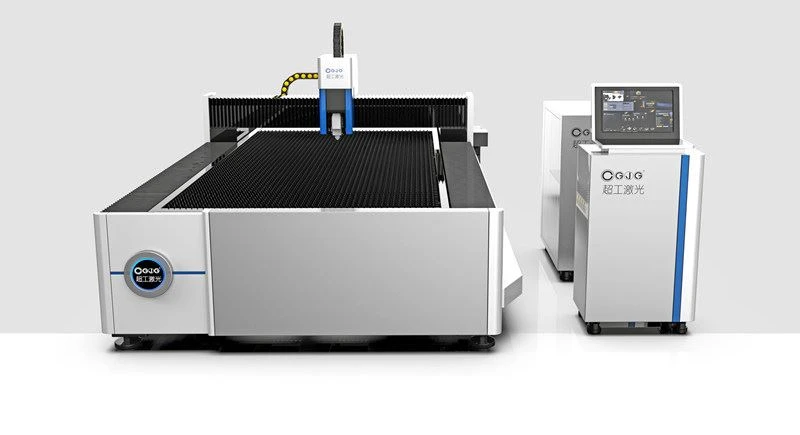

Product Introduction:
Fast cutting speed:2~3 times of same power CO2 laser cutting machine
Fast speed of cutting:
The laser cutting machine with the same power as CO2 cuts at a slower rate compared to the machine that is 2~3 times faster. To rephrase this, the cutting machine that operates at a higher speed than a CO2 laser cutter with an equivalent power output is capable of completing tasks much faster.
The key parts of a fiber laser source have a remarkably long lifespan of up to 100000H, providing exceptional stability. This means that you can rely on the technology to perform consistently over time, without the need for frequent maintenance or part replacement. With a fiber laser source, you can enjoy the benefits of highly reliable and long-lasting laser technology.

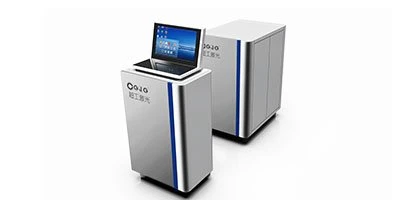

The purpose of having a dependent control cabinet is to protect the electrical components from dust, thereby extending the lifespan of the machine.
Technical Parameters:
Machine Model | CG-4015 |
Working area | 4000mm*1500mm（Optional） |
Laser power | 1000W~6000W |
Repeat positioning accuracy | ±0.02mm |
Max. acceleration | 1.0G |
Maximum speed | 90m/min |
Specified voltage and Frequency | 380V 50Hz/60Hz/60A |
Color | White +Gray |
Logo | Customized Service |
Z Travel | 100mm |
Key Parts:

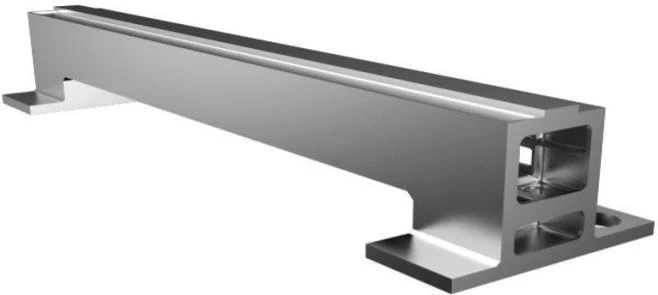

Aviation Aluminum Gantry:
By utilizing an aerospace standard high-strength aluminum alloy material, the latest generation gantry has enhanced overall beam strength, stiffness, and stability. This ensures that the equipment performs with optimum functionality.

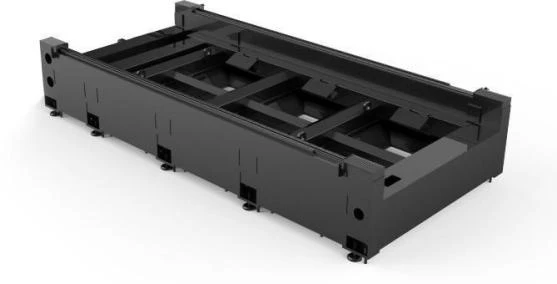

Segmented Rectangular Welded Bed:
To enhance the robustness and tensile strength of the lathe bed, internal tubes are fitted with stiffeners. This arrangement effectively strengthens the structure and improves its overall durability and resistance to tension.

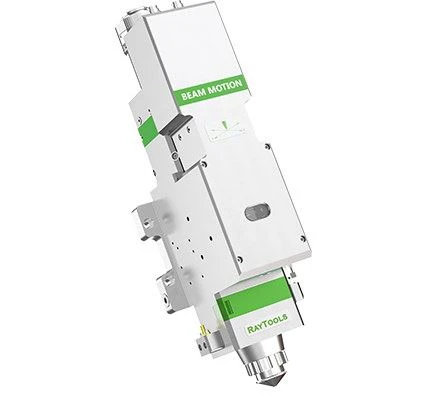

Cutting Head:
The features of this product include the ability to adjust its height, high sensitivity, real-time temperature detection, an active anti-collision design, and a long service life. With these advanced capabilities, users can benefit from a highly responsive and durable product that is capable of accurately detecting temperature changes. Additionally, the anti-collision design ensures that the device remains intact even in high-traffic areas. Overall, this product offers users a high level of performance, versatility, and durability, making it an ideal choice for a wide range of applications.

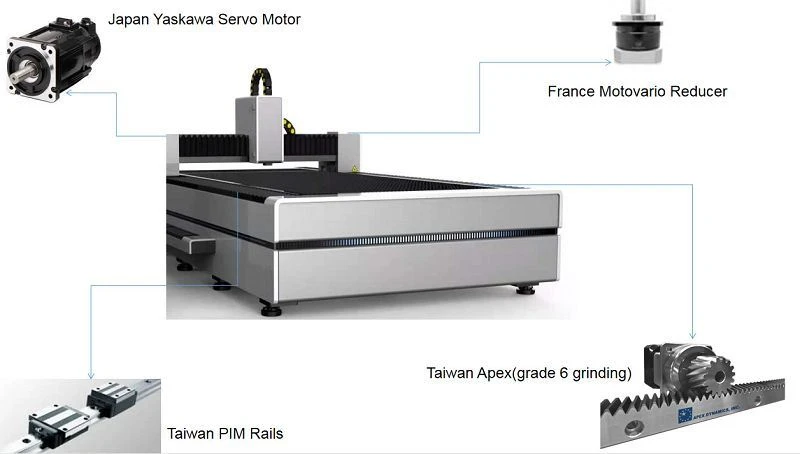

Transmission and Precision:
The CG Fiber laser cutting machine boasts top-of-the-line components, such as the Japan YASKAWA Servo Motor and France MOTOVARIO reducer. This combination ensures incredible positioning accuracy, with a margin of only ±0.02mm, while its cutting acceleration can reach up to 1.0G. With a lifespan of over 10 years, this machine is a long-term investment.
Servo Driver and Motor-YASKAWA:
Adopt Japan YASKAWA motor
High speed and accuracy
High adaptability and stability
Timeliness,short dynamic response time
Less fever and noise

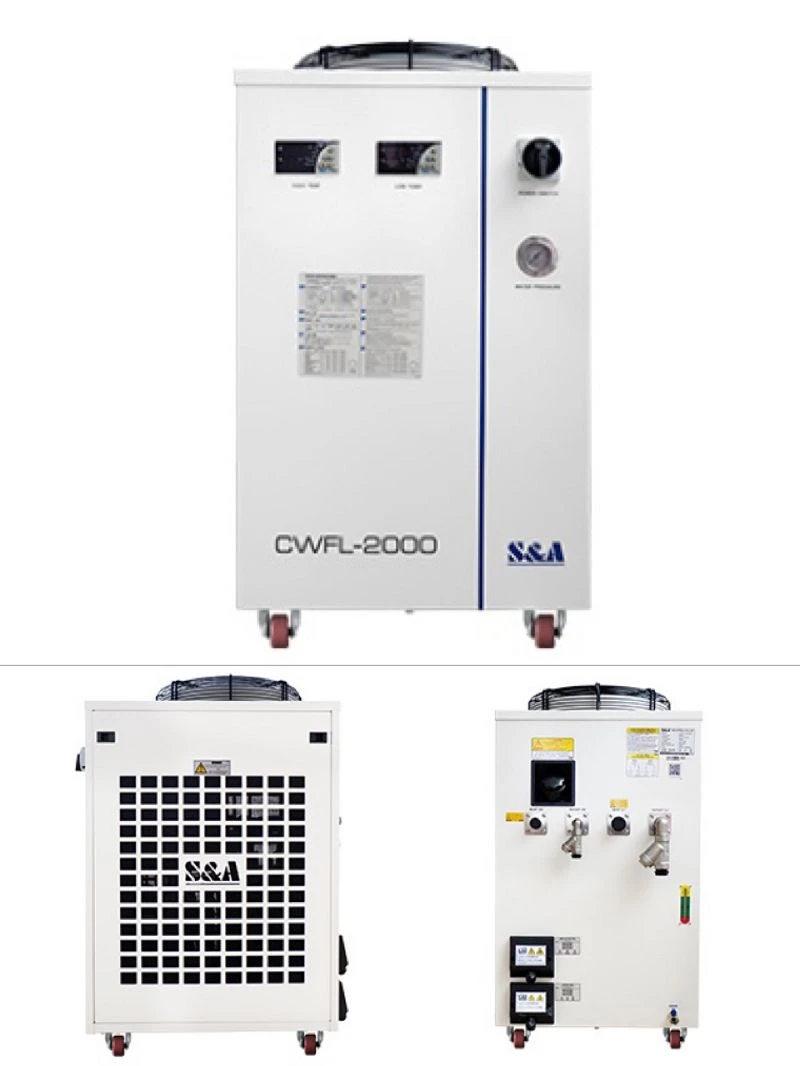

Water Chiller--S&A :
The machine is equipped with a dual cooling function that ensures efficient and effective cooling. It is also equipped with a real-time alarm system that alerts users immediately in case of any issues. Additionally, the machine is designed to provide machine protection, thus ensuring its durability and longevity. Moreover, it has the ability to switch to an intelligent temperature control mode, which optimizes performance based on the prevailing conditions. Consequently, all these features combined make the machine highly reliable and efficient.
Cutting Material and Range
This cutting tool is primarily designed for a wide range of materials, with a particular focus on carbon steel, stainless steel, various aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, various alloy plates, rare metals, and other flat two-dimensional metal materials. Its versatility allows for efficient cutting in these applications.
Cutting Range：
Carbon Steel: 0.5-16mm
Stainless Steel: 0.5-5mm
Aluminum alloy:0.5-5mm
Brass: 0.5-3mm

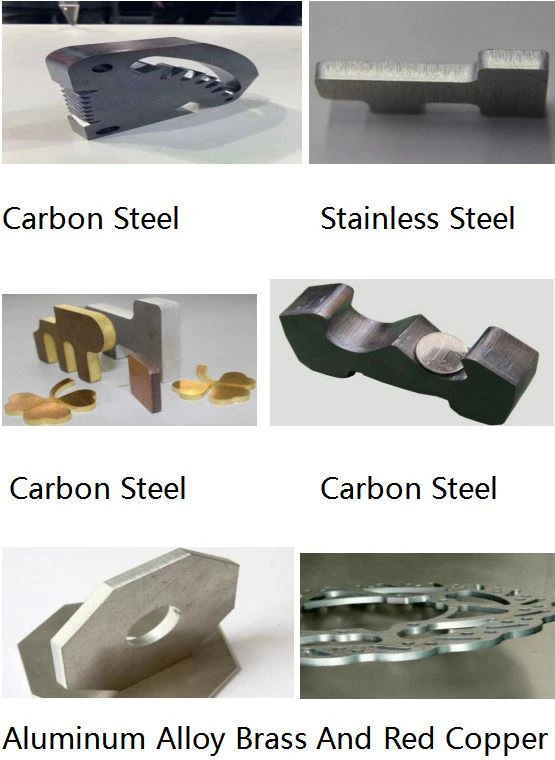

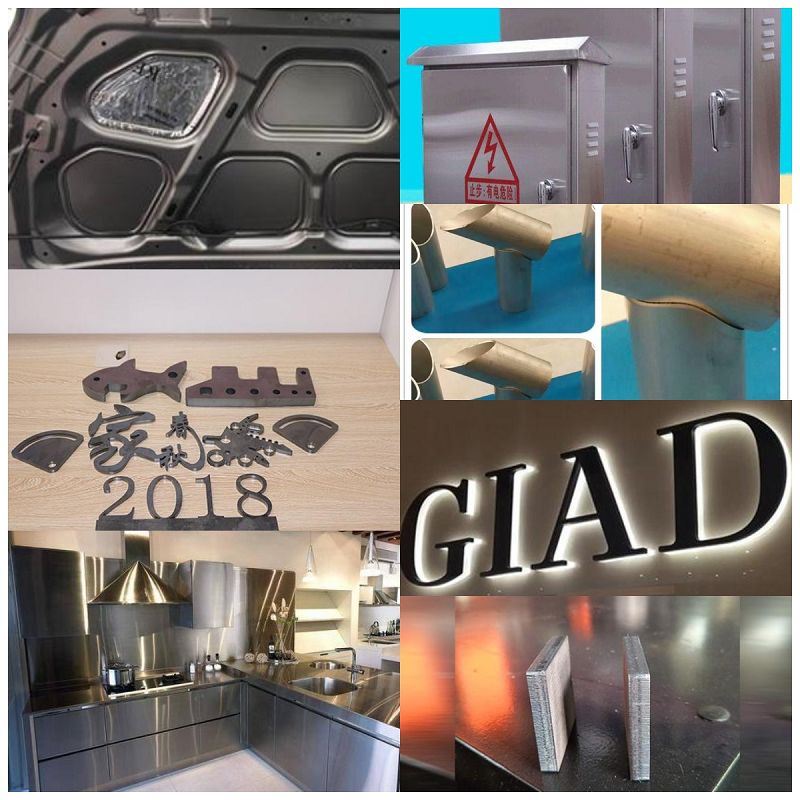

Cutting Samples
Application Area
Widely used in: manufacturing billboards, sheet metal chassis, metal parts, signboards, auto parts, display equipment, various metal products, sheet metal cutting and processing and other industries。
