Product Introduction:

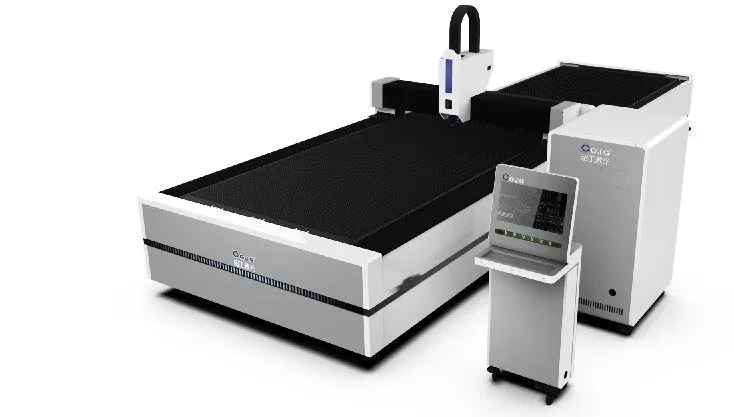

The machine tool's overall design is well-organized and compact, making it an ideal choice for cutting extensive sheets and plates.
By utilizing two work tables that can be exchanged during production, the efficiency of our manufacturing process has been greatly improved. With a working area of 3000 * 1500mm, we are able to seamlessly switch between the two tables to perform various tasks, leading to a significant increase in productivity. This innovative approach has allowed us to streamline our operations and meet the demands of our customers in a timely and efficient manner.
The cutting speed of this machine is incredibly rapid, surpassing even CO2 laser cutting machines by a factor of 2 to 3.
Stable operation:
With the utilization of the finest fiber laser generator globally, one can achieve unwavering performance coupled with the remarkable ability of the key components to function for up to 100,000 hours.
Furthermore, it offers high photoelectric conversion efficiency, along with the added benefits of being affordable, easy to maintain, and operate with simplicity.
Technical Parameters:
The standard configuration for the Fiber Laser Cutting Machine is well-suited for both 2000W and 3000W applications. You can expect high performance and precision from this machine, making it an ideal choice for a variety of cutting tasks. By rearranging the original content, we can emphasize the machine's capabilities and versatility, creating a factual yet engaging statement that highlights its benefits.
Laser Source: MAX/RAYCUS 2000W/3000W
BM111 is an auto focus cutting head developed by Raytools, specifically designed for precision cutting applications. With its advanced technology, this cutting head offers precise and efficient cutting performance. The auto focus feature ensures optimal focal length at all times, resulting in enhanced cutting accuracy and quality. Raytools' BM111 cutting head is a reliable choice for industries requiring high precision cutting, as it delivers consistent and exceptional results.
Control System: CYPCUT controller FS2000
The Yaskawa Y servo motor from Japan is a powerful device, with each axis offering different wattage capabilities. The Y-axis provides a remarkable 1300W, while the X-axis delivers 850W. Lastly, the Z-axis offers a slightly lesser wattage of 400W. These servo motors are known for their exceptional performance and reliability in various industrial applications.
Sure, I can generate a highly similar content by rearranging the above content. Here it is:
Hanli cooling system and S&A offer a dual-temperature cooling system that provides efficient temperature control. This system is designed to cater to the diverse cooling needs of various industries. With the dual-temperature feature, users can have separate temperature settings for different applications, ensuring optimal cooling performance. The Hanli cooling system, in collaboration with S&A, delivers reliable and effective cooling solutions for a range of industrial requirements. By integrating advanced technologies, this system ensures enhanced cooling efficiency and extends the lifespan of equipment. Whether it's for industrial processes, manufacturing facilities, or research laboratories, the dual-temperature cooling system by S&A/Hanli is the ideal solution to meet your specific cooling needs.
Guide rail : PMI guide rail
Rack: APEX /YYC rack
The machine bed is a robust structure made of heat-treated heavy-sheet welded material.
Gantry : Aluminium gantry
Reducer: MOTOVARIO reducer
Automatic lubrication system
Computer: Industry computer
Machine Model | CG-E3015 Exchange Table |
Working area | 3000mm*1500mm(Optional) |
Laser power | 1000W~6000W |
Repeat positioning accuracy | ±0.02mm |
Max. acceleration | 1.0G |
Maximum speed | 90m/min |
Specified voltage and Frequency | 380V 50Hz/60Hz/60A |
Color | White Gray |
Logo | Customized Service |
Z Travel | 250mm |
Key Parts:

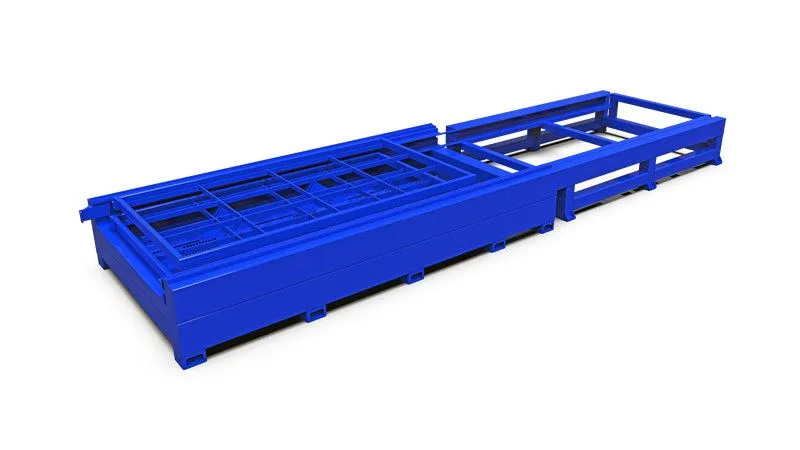

Working Platform:
The exchange platform of this machine is designed to move in an upward and downward motion. The exchange motor, which is controlled by the converter, is responsible for controlling this movement. Remarkably, the platform exchange is completed within a remarkable timeframe of just 15 seconds.

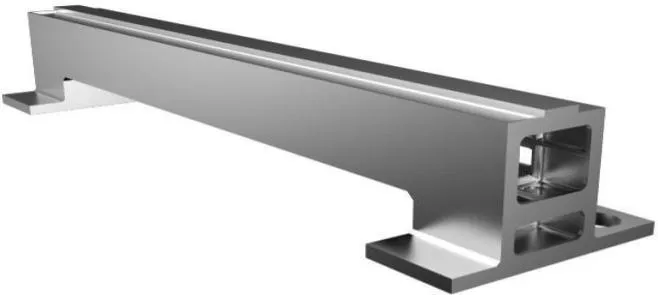

Aviation Aluminum Gantry:
The whole structure is made of steel die casting, which is finished after artificial aging and solid solution treatment， so that the beam rigidity, surface quality, integrity and other performance are all excellent. At the same time, it has the characteristics of high flexibility, which can achieve high-speed cutting of all kinds of graphics under the condition of satisfying the precision.

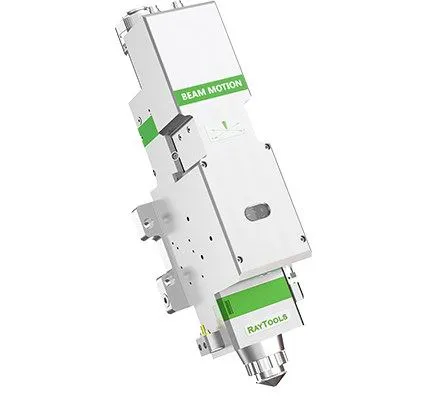

Raytools Cutting Head:
Use the world’s branded advanced laser cutting head,can realize automatic focusing. The optimized optical configuration and smooth and efficient air flow design ensure high precision and strong stability.
Transmission and Precision:
CG Fiber laser cutting machine is equipped with Japan YASKAWA Servo Motor, France MOTORVARIO reducer. It makes sure that the machine positioning accuracy is ±0.02mm,and the cutting acceleration is 1.0G. The service life is more than 10 years.

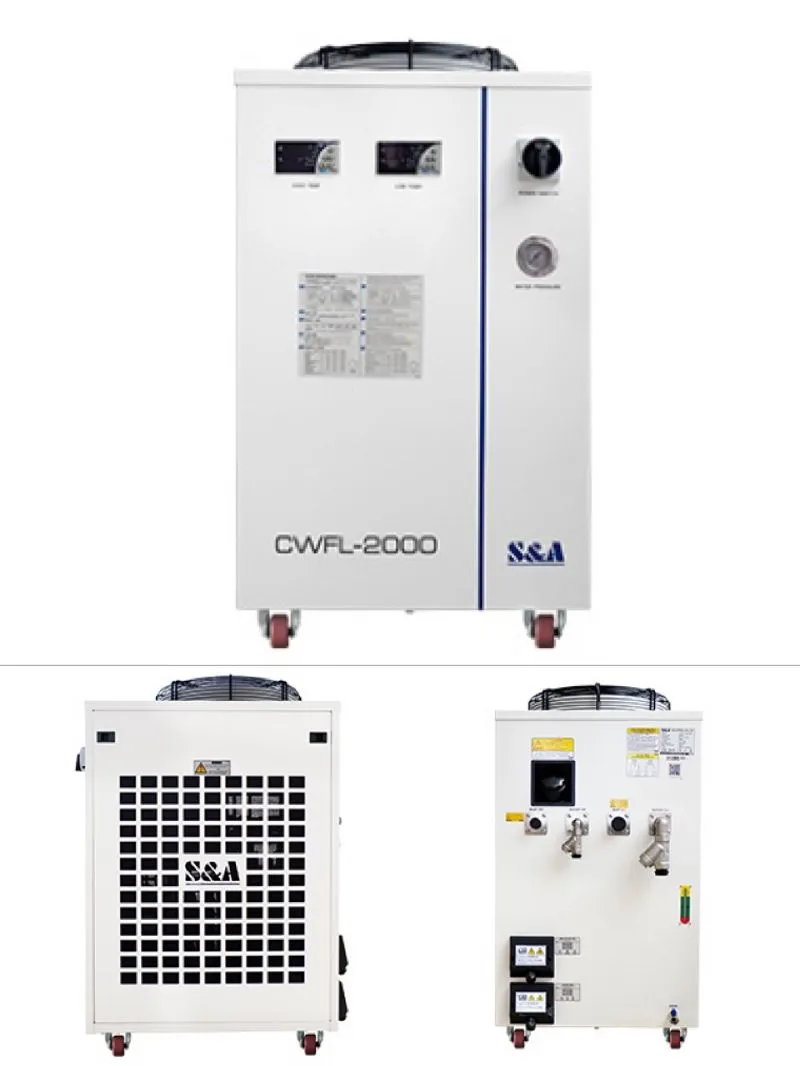

S&A Water Chiller:
High Power industrial water cooling system cools the fiber laser source and optical lens
Automatic Oil Lubrication System
The automatic oil lubrication system automatically lubricates the guide rail, slider, rack and gear. It can be set by the time and travelled distance. All running parts with oil, prolong their working life, effectively prolongs the life of the machine and reduces wear.
Cypcut Control System
The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhances the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.
Cutting Material and Range
For cutting a variety of materials, mainly used in carbon steel, stainless steel, a variety of aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, a variety of alloy plates, rare metals and other metal materials of two-dimensional flat cutting.
Cutting Range：
Carbon Steel: 0.5-16mm
Stainless Steel: 0.5-5mm
Aluminum alloy:0.5-5mm
Brass: 0.5-3mm

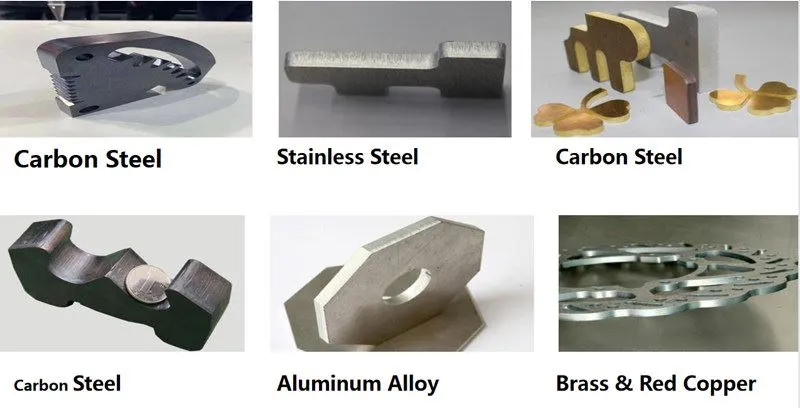

Cutting Samples

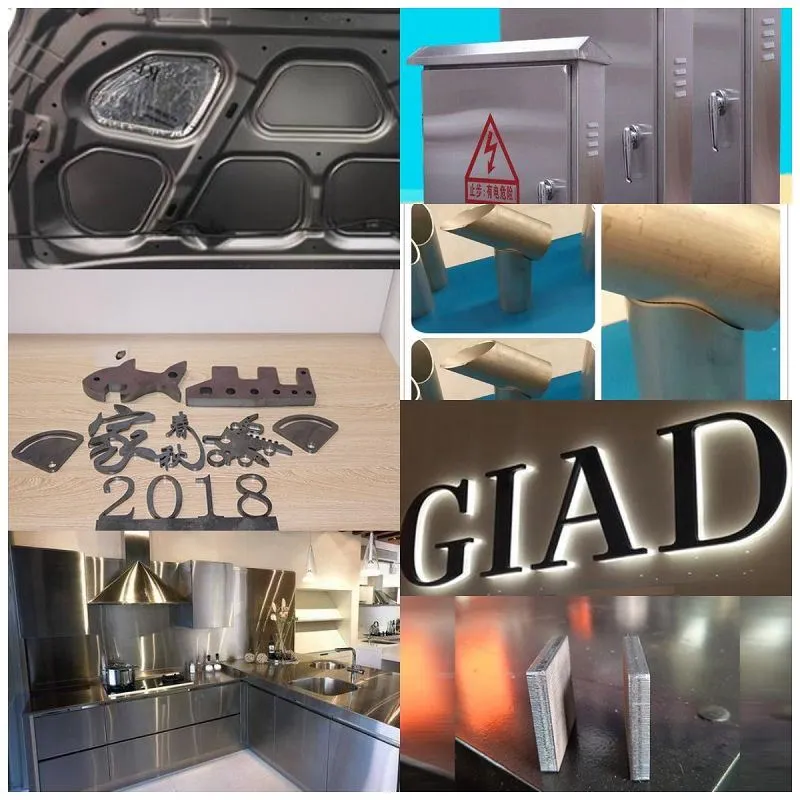

Application Area:
As a classic model,CG-3015 fiber laser cutting machine is widely used in many
Sides in life,such as rail transit,automobile,engineering machinery,agricultural and forest machinery,electrical appliances manufacturing,elevator manufacturing,household appliances,food & textile machinery,petroleum machinery,kitchen and bathroom,decorative advertising,etc.
