Fiber Laser Cutting Machine 2000 W For Metal Sheet

Looking for the best fiber laser cutter in the metal industry? Look no further than the 3015E, which has been rated as the top level option in China and is the preferred choice for customers. This advanced machine features an expertly welded bed that has gone through annealing and aging treatment to ensure precision and durability. The beam is crafted from airborne aluminium castings, making it even more robust and efficient. With a top running speed of 80 m/min., the 3015E is the ideal solution for anyone looking to streamline their metal cutting process.

The ideal Fiber Laser Cutting Machine Configuration is designed to perfectly accommodate 2000W power. This means that it is fully optimized to deliver outstanding results when using the said power rating. With this machine, you can expect exceptional cutting capabilities that will exceed your expectations. The configuration is designed to ensure that every component works in perfect harmony with the other, resulting in seamless performance and high-quality output. Get your hands on this top-end configuration today and experience the ultimate in laser cutting technology.

Laser Source: MAX/RAYCUS 2000W

The cutting head used in this process is the Raytools auto focus cutting head BM111. To create a similar content, the information from the original text should be rephrased and rearranged. This particular cutting head is critical in ensuring accurate cuts and precision in the work. Therefore, it is essential that the focus is on the production of a highly detailed output.

Control System: CYPCUT controller FS2000

The servo motor installed in the machine is a Yaskawa brand from Japan. It has a power rating of 1300W for the Y-axis, 1300W for the X-axis, and 400W for the Z-axis. This high-performance servo system is designed to meet the demanding requirements of industrial automation applications. It incorporates advanced technology that enables precise and accurate control of motion, resulting in fast, reliable, and efficient operations. The Yaskawa servo motor is a reliable and cost-effective solution that offers exceptional performance and long-lasting durability.

Dual-temperature: S&A/Hanli cooling system;

Guide rail : PMI guide rail

Rack: APEX /YYC rack

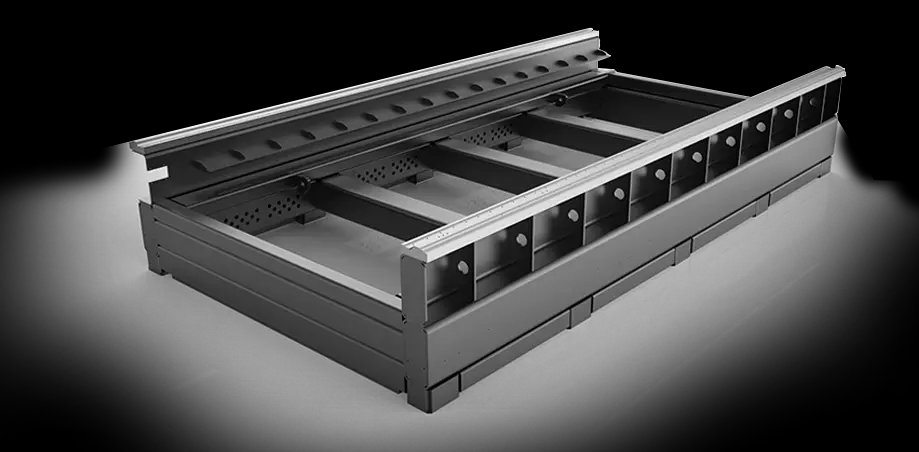

Machine bed: Heat treated heavy sheet welding machine bed;

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Detail picture

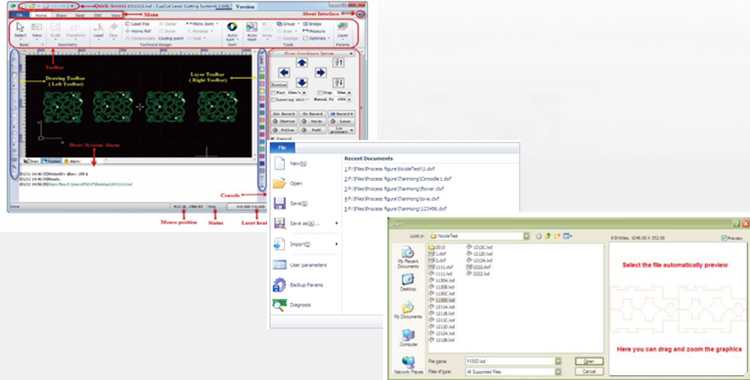

CYPUT CONTROL SYSTEM

*Support AI, DXF, PLT, Gerber, LXD and other graphic data formats, and accept the Cyput Laser Cutting Control System international standard G code generated by MaterCam, Type3, Wentai and other software.

*To conduct automatic optimization when opening/importing DXF and other external files, including: to remove repetitive lines, merger connected lines, remove tiny graphics as well as automatically distinguish inside and outside models and conduct sorting. The above each function can be defined, as well as be carried out manually. To support common editing and typesetting functions, including: zooming in and zooming out, translation, mirror, rotation, alignment, copying, combination and so on.

*To use the easiest way to set the lead, slotted compensation, micro
connection, bridge-connection, lead inside or outside, lead seal without gap and so on.

GEARS, RACKS, GUIDES

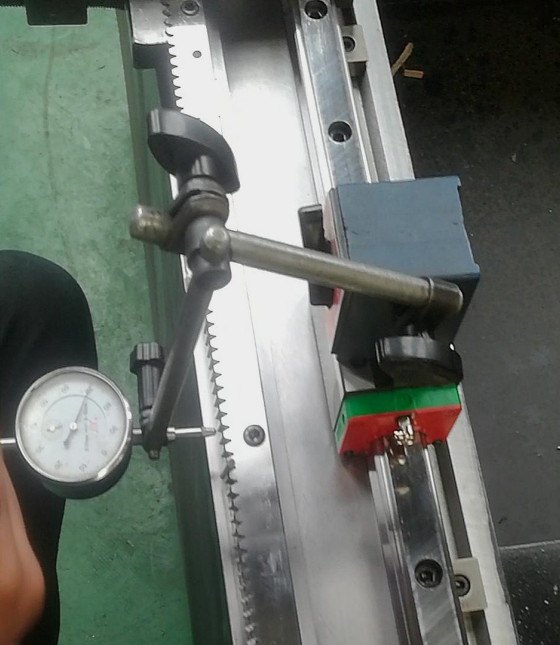

*The guide rail and rack are calibrated by a precision collimator with an accuracy of ±0.02mm

*Using Taiwan APEX/YYC rack, grinding on all sides. And there is a positioning pin design to prevent the rack from shifting

*Using Taiwan HIWIN guide rail, and use oblique pressure block design to prevent displacement of guide rail

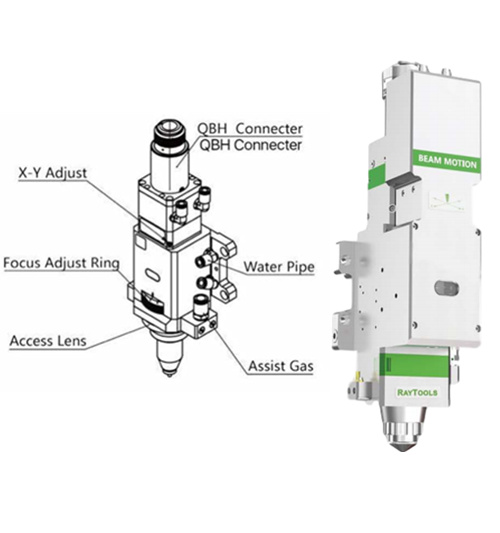

SWITZERLAND RAYTOOLS AUTO-FOCUS LASER CUTTING HEAD

*AUTOFOCUS: Through the built-in drive unit of the servo motor, the focusing lens is driven by the linear mechanism to automatically change the position in the focusing range. The user can set continuous zoom through the program to complete the rapid piercing of the thick plate and automatic cutting of different materials. *EFFICIENT: Reading the saved cutting parameters through the operating system can quickly change the focus position of the laser head, eliminating manual operation and improving efficiency by 30% *STABLE: Unique optical configuration, smooth and efficient airflow design and dual water-cooled design make the laser head work stably for a long time

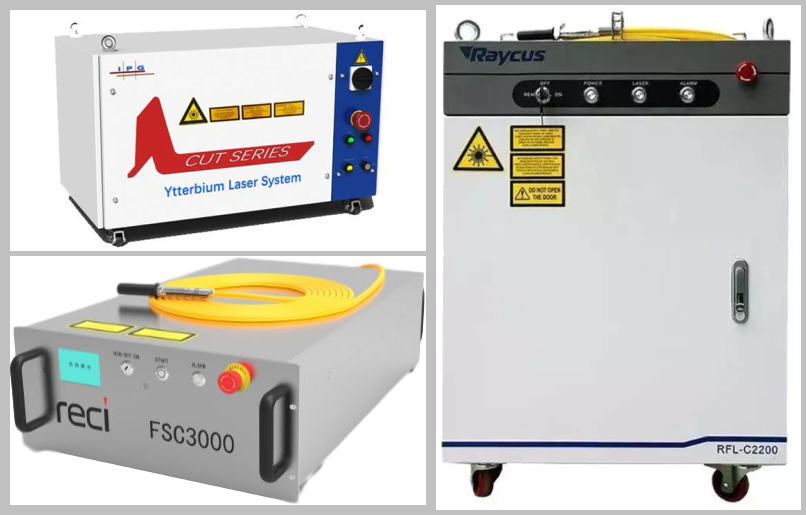

OPTIONAL LASER SOURCE

*Different options of famous brand laser source(Reci/Raycus/IPG), We have professional sales and technician who can suggest you the most suitable laser source, depending your target price.

*Stable performance and high cost performance *The fiber launch is stable, with long service life of nearly 100,000 hours *It can run continuously 24 hours a day to meet the requirements of industrial continuous production

We can provide team viewer and skype with cam till all of your problems solved.

Sample display

Company Profile

Shandong Chaogong Laser Technology Co., Ltd. is one of the laser equipment manufacturers in Shandong Province, China. The company focuses on the R& D, manufacturing and sales of high-power laser processing equipment, including high-power laser cutting machine, laser welding machine and multi-functional laser processing equipment, to provide customers with personalized and professional laser processing system solutions. The main products of super laser cover the full power series of optical fiber laser cutting series, laser marking series, laser processing special equipment and cutting complete equipment, etc. the products are widely used in iron and steel metallurgy, non-ferrous metals, automobile and parts, aerospace, military electronics, precision instruments and meters, machinery manufacturing, hardware tools, integrated circuits, solar energy and other industries.

company's product service focuses on prevention, implements the customer return visit, continuous improvement, rapid response, efficient and accurate service mechanism to ensure the stable and efficient operation of products and help customers improve economic efficiency. The company has a complete sales and after-sales service network, marketing management center and domestic sales department, international trade department and customer service department. The sales and after-sales service network covers most cities in China, and the products are highly praised by customers.

company adheres to the business philosophy of "building brand with quality, pursuing development with science and technology, promoting step with innovation, and winning market with service". With advanced technology, the company is committed to providing global users with comprehensive laser application solutions. Chaogong is willing to work with all partners to make progress and win-win development and jointly build itself into a domestic manufacturing and R & D base for high-power laser processing complete equipment.

RFQ

Q1.how to get the most suitable machine and best price

please tell the material you want to working on?How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Then we will supply you 2-3 solution for advice.

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance,the balance prior to the shipment.

Q3.What is the producing time after order?

The production time is about 10-20 days depend on the exact machine and the quantity.

Q4.If we don't know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will

have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or what’sapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The

complete machine will be tested to make sure they can work very well before being out of factory.The testing video and pictures

will be sent to you before the delivery.
