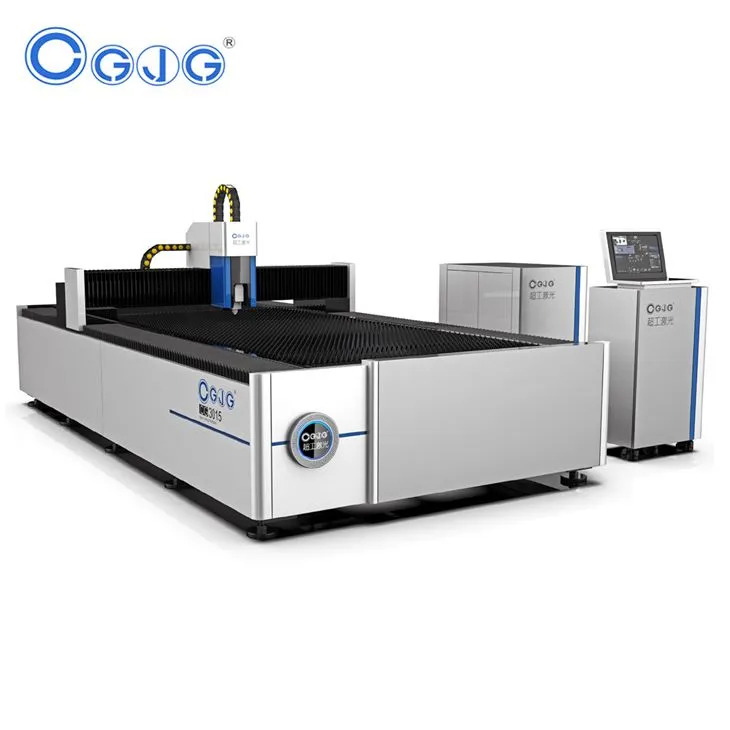

As a reputable manufacturer of laser equipment, CGJG Laser offers the F3015 Series open type fiber laser cutting machine. Specifically designed to deliver high precision sheet metal processing, this machine is capable of cutting various metals such as stainless steel, carbon steel, and brass. Customers have lauded the machine's elegant appearance and user-friendliness.
To cater to different needs, the F3015 Series offers a range of laser sources to choose from, including IPG/RAYCUS/MAX, with power ranging from 1KW to 6KW to ensure maximum cutting ability. With more than 100,000 hours of lifespan, the machine delivers stable performance, guaranteed to last long.

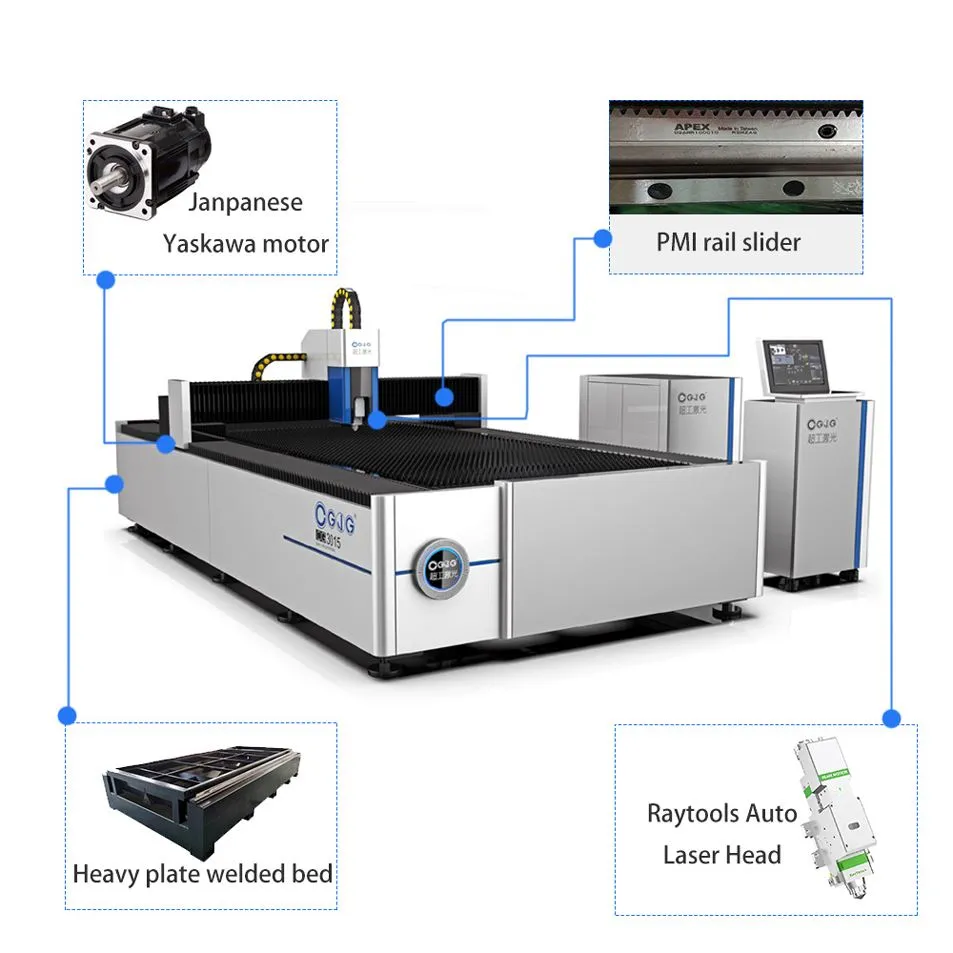

What's more, the CGJG fiber laser cutting machine is outfitted with top-quality components such as Japanese Yaskawa motor, French Motoreducer, and Taiwan APEX rack, ensuring superior performance and the positioning accuracy of the machine tool can reach an impressive 0.02mm with cutting acceleration of 1G. With an extended lifespan of up to 10 years, the CGJG fiber laser cutting machine is the perfect investment for any business seeking quality and efficiency.
The standard configuration for a fiber laser cutting machine is suitable for a power rating of 1000W. Please rearrange the given information to create a highly similar content that is based on the original text.
Laser Source: MAX/RAYCUS 1000W
The cutting head used is the Raytools auto focus cutting head BM110. This highly advanced cutting head ensures precise and accurate cutting, producing high-quality results for a wide range of materials. Whether you're working with thick or thin materials, the Raytools cutting head can handle it all. With its advanced technology, you can seamlessly adjust the focus of the cutting head, ensuring optimal cutting performance every time. Trust in the Raytools cutting head for all your cutting needs.
Control System: CYPCUT controller FS2000
The Yaskawa servo motor from Japan is a reliable and high-performance device. With power ratings of 850W for the Y-axis, 850W for the X-axis, and 400W for the Z-axis, it offers excellent torque and precision control. This servo motor is well-known for its efficiency and durability, making it suitable for various industrial applications. The Yaskawa Y servo motor is an optimal choice for those seeking reliable and efficient motion control solutions.
Introducing the ultimate dual-temperature cooling system from S&A/Hanli. This innovative system provides superior performance and efficiency, making it the perfect choice for any cooling needs. With advanced technology and cutting-edge design, this system is guaranteed to deliver optimal temperature control, no matter what your application may be. So why settle for anything less? Upgrade to the best dual-temperature cooling system today!
Guide rail : PMI guide rail
Rack: APEX /YYC rack
The bed of the machine is made of a heavy sheet that has undergone heat treatment for welding purposes.
Gantry : Aluminium gantry
Reducer: MOTOVARIO reducer
Automatic lubrication system
Computer: Industry computer
Technical Parameter:
Function parameter List | F3015 | F4015 | ||
Item | Subitem | |||
Basic parameter | Working area | 3048mm*1524mm | 4000mm*1524mm | |
Max.linkage speed | 100m/min | 100m/min | ||
Performance | Max. acceleration | 1G | 1G | |
Table load bearing | 1000kg | 1200kg | ||
Machine size | 4508*2255*1650mm | 5500*2255*1650mm | ||
Machine weight | 3500kg | 4000kg | ||
Z axis travel | 100mm | 100mm | ||
Positioning accuracy | ±0.05mm | ±0.05mm | ||
Repositioning accuracy | ±0.03mm | ±0.03mm | ||
Φ30mm roundness | ≤0.15mm | ≤0.15mm | ||
□30mm adjacent side dimension | ≤0.06mm | ≤0.06mm | ||
Configuration | Optical system | laser head | WSX/Raytools/Precitec | WSX/Raytools/Precitec |
Laser source | MAX/Raycus/IPG | MAX/Raycus/IPG | ||
mechanical system | Machine bed | Plate welded bed | Plate welded bed | |
Gantry structure | Aviation Aluminum Beam | Aviation Aluminum Beam | ||
X/Y/Z-axis Servo | Yaskawa | Yaskawa | ||
Linear Rails | HIWIN/PMI | HIWIN/PMI | ||
Rack | APEX | APEX | ||
Electrical system | Control system | CypCut | CypCut | |
Display size | 21.5 inches | 21.5 inches | ||
Breaker | France Schneider | France Schneider | ||
Relay | Schneider/ ABB | Schneider/ABB | ||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2 gas control valve | Japan SMC | Japan SMC | ||
N2 gas control valve | Japan SMC | Japan SMC | ||
Machine Details:

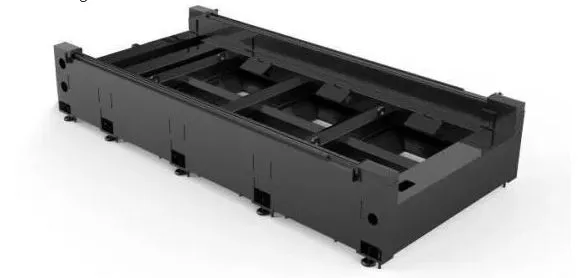

| Carbon Steel Welded Machine Bed |
| The Third Generation Aviation Aluminum Beam |
| Raycus/MAX/IPG Laser Source Choose |
| RayTools/Precitec/WSX Cutting Head Choose |
| Taiwan APEX Rack |
| S&A/Hanli Water Chiller Choose |
Industry Applications:
F3015 fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.
Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Cutting Capacity
Product Feature:
1.Carbon Steel Welded Stronger Bed.
2.Value and Accessibility.
3.High Speed High Efficiency.
4.1KW-6KW IPG/RAYCUS/MAX Laser Source.
5.Single Work Table Open Design.
6.Elegant Simple Design Sheet Metal.
7.Independent Control Cabinet.
8.Aviation Aluminum Gantry.
Honor Certificate:
FAQ:
Q1:Where is your factory located?
We are in Jinan city of China, 30 mins from Jinan Yaoqiang airport.
Q2:How can I get a sample to check your quality?
We can cut samples from your design and send to you.
Q3:How long can I expect to get the sample?
Genrally in 3-10 days after laser cutting.
Q4:Packaging & Shipping
Wood case and protection film.
4 sets 3015 Single table in 40 foot container.
Q5:What about the lead time for mass production?
Usually 30 days depends on fiber laser cutting machine type.
Q6:Does your product have warranty service? How long is the warranty period?
2-year warantry for fiber laser cutting machine.
Q7:How to provide technical support to customers?
We provide after sales service and technical training.We committed to provide customers a good purchasing experience.
Q8:How to become your overseas agent?
We are very glad to cooperate with you as our agent, we will provide more preferential policies.
