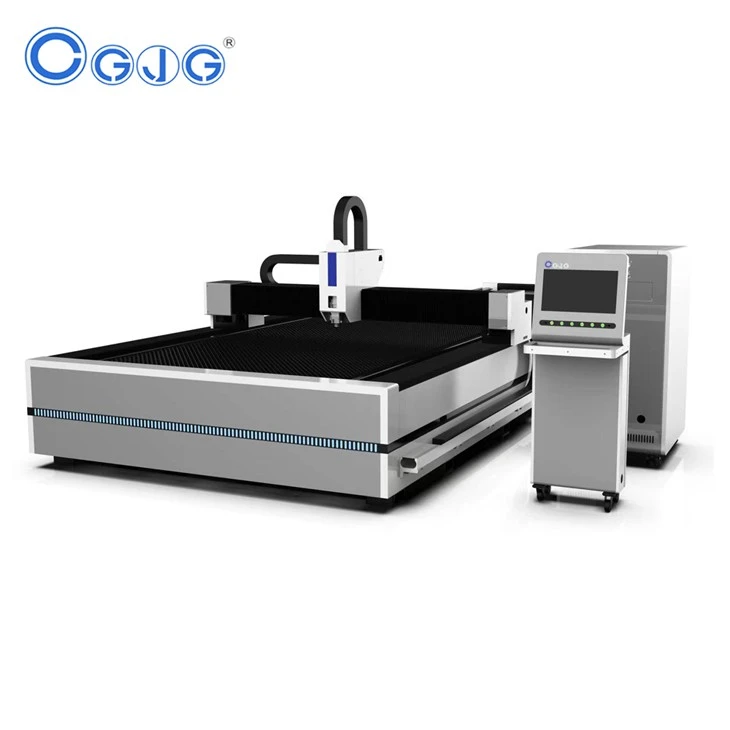

At CGJG Laser, we're committed to creating top-quality fiber laser equipment and leading the way in metal cutting solutions. Our focus has always been on building a strong brand through quality products and excellent customer service. We're proud to introduce our E3015 Series fiber laser machines, which come equipped with an exchange table that allows for loading while cutting and saves valuable time.
Our machines have been designed to cut various metals, including stainless steel, carbon steel, and brass, and are known for their elegant appearance and ease of operation. We offer a choice of laser sources, including IPG, RAYCUS, and MAX, and our laser power ranges from 1KW to 6KW, ensuring efficient cutting ability, stable performance, and a lifespan of over 100,000 hours.
Our fiber laser cutting machines are equipped with high-quality components, including Japanese Yaskawa motors, French Motoreducers, and Taiwan APEX racks. This ensures accurate positioning of the machine tool, with a precision of 0.02mm and cutting acceleration of 1G, resulting in long-lasting machine performance that can last up to 10 years.
At CGJG Laser, we're passionate about our commitment to quality and customer satisfaction, and we strive to provide the best metal cutting solutions available on the market today.
Technical Parameter:
The standard configuration of the Fiber Laser Cutting Machine is compatible with power capacities of 2000W and 3000W. You can optimize the generated content by reorganizing the provided information while ensuring that the generated text maintains the essence of the original content.
Laser Source: MAX/RAYCUS 2000W/3000W
The cutting head used is the BM111 auto focus cutting head by Raytools. To create a similar piece of content based on this information, one could rephrase it as follows: Raytools utilizes their innovative BM111 auto focus cutting head to ensure precise cutting. This groundbreaking technology allows for maximum efficiency and accuracy, resulting in exceptional end products.
Control System: CYPCUT controller FS2000
The servo motor being used here is a Yaskawa Y model, which has a power of 1300W for the Y-axis, another 1300W for the X-axis, and 400W for the Z-axis. This configuration ensures precise and accurate control over the movement of the machine, allowing for optimal performance and efficiency. The Yaskawa brand is known for its high-quality and dependable motors, making it a popular choice for many manufacturing and industrial applications. With such powerful and reliable equipment, the potential for achieving high levels of productivity and precision is greatly increased.
The S&A/Hanli cooling system is a dual-temperature system that provides efficient cooling. This system utilizes advanced technology to maintain two distinct temperature levels simultaneously. With its innovative design, it ensures optimal cooling performance for various industrial applications. The S&A/Hanli cooling system is a reliable choice for industries requiring precise temperature control and efficient cooling capabilities. Experience the benefits of this dual-temperature cooling system and enhance your operational efficiency.
Guide rail : PMI guide rail
Rack: APEX /YYC rack
Machine bed: Heat treated heavy sheet welding machine bed;
Gantry : Aluminium gantry
Reducer: MOTOVARIO reducer
Automatic lubrication system
Computer: Industry computer
Function parameter List |
E3015 |
E4015 | ||
Item | Subitem | |||
Basic parameter | Working area | 3048mm*1524mm | 4000mm*1524mm | |
Max.linkage speed | 100m/min | 100m/min | ||
Performance | Max. acceleration | 1G | 1G | |
Table load bearing | 1000kg | 1200kg | ||
Machine size | 4508*2255*1650mm | 5500*2255*1650mm | ||
Machine weight | 3500kg | 4000kg | ||
Z axis travel | 100mm | 100mm | ||
Positioning accuracy | ±0.05mm | ±0.05mm | ||
Repositioning accuracy | ±0.03mm | ±0.03mm | ||
Φ30mm roundness | ≤0.15mm | ≤0.15mm | ||
□30mm adjacent side dimension | ≤0.06mm | ≤0.06mm | ||
Configuration | Optical system | laser head | WSX/Raytools/Precitec | WSX/Raytools/Precitec |
Laser source | MAX/Raycus/IPG | MAX/Raycus/IPG | ||
mechanical system | Machine bed | Plate welded bed | Plate welded bed | |
Gantry structure | Aviation Aluminum Beam | Aviation Aluminum Beam | ||
X/Y/Z-axis Servo | Yaskawa | Yaskawa | ||
Linear Rails | HIWIN/PMI | HIWIN/PMI | ||
Rack | APEX | APEX | ||
Electrical system | Control system | CypCut | CypCut | |
Display size | 21.5 inches | 21.5 inches | ||
Breaker | France Schneider | France Schneider | ||
Relay | Schneider/ ABB | Schneider/ABB | ||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2 gas control valve | Japan SMC | Japan SMC | ||
N2 gas control valve | Japan SMC | Japan SMC | ||
Machine Details:
|
Carbon Steel Welded Machine Bed |
|
The Third Generation Aviation Aluminum Beam |
|
Raycus/MAX/IPG Laser Source Choose |
|
RayTools/Precitec/WSX Cutting Head Choose |
|
Taiwan APEX Rack |
|
S&A/Hanli Water Chiller Choose |
Industry Applications:
E3015 fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.
Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Cutting Capacity
Honor Certificate:
FAQ:
Q1:Where is your factory located?
We are in Jinan city of China, 30 mins from Jinan Yaoqiang airport.
Q2:How can I get a sample to check your quality?
We can cut samples from your design and send to you.
Q3:How long can I expect to get the sample?
Genrally in 3-10 days after laser cutting.
Q4:Packaging & Shipping
Wood case and protection film.
4 sets 3015 Single table in 40 foot container.
Q5:What about the lead time for mass production?
Usually 30 days depends on fiber laser cutting machine type.
Q6:Does your product have warranty service? How long is the warranty period?
2-year warantry for fiber laser cutting machine.
Q7:How to provide technical support to customers?
We provide after sales service and technical training.We committed to provide customers a good purchasing experience.
Q8:How to become your overseas agent?
We are very glad to cooperate with you as our agent, we will provide more preferential policies.
