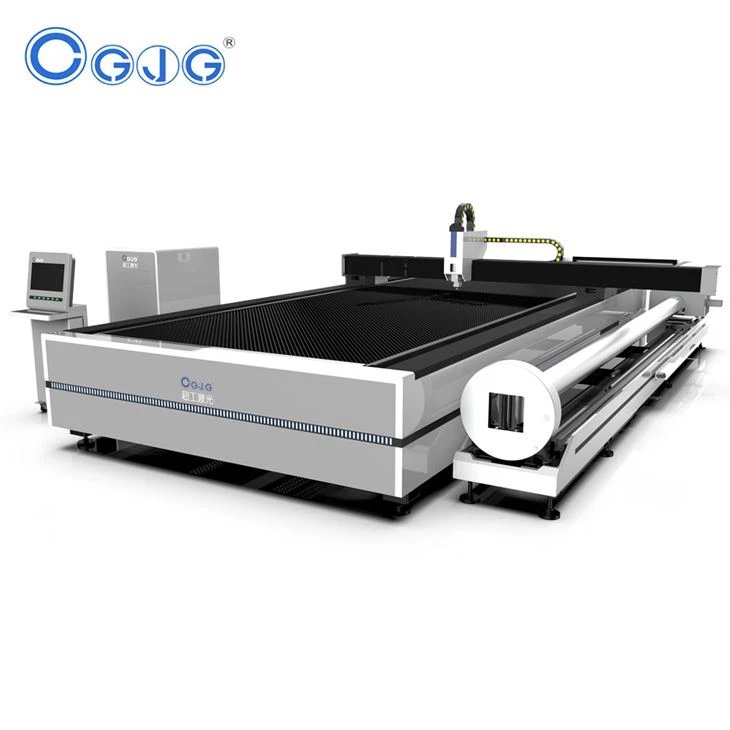

Looking for a reliable laser equipment manufacturer for sheet metal processing? CGJG Laser has got you covered. Our ET3015 Series open type fiber laser cutting machine is perfect for cutting various metals like stainless steel, carbon steel, and brass with high precision. Our customers love its elegant appearance and easy operation.
We offer a range of laser sources to choose from, including IPG, RAYCUS, and MAX. With fiber laser power ranging from 1KW to 6KW, you can be sure of its big cutting ability, stable performance, and lifespan of over 100,000 hours.
Our fiber laser cutting machine comes equipped with Japanese Yaskawa motor, French Motoreducer, and Taiwan APEX rack, ensuring a positioning accuracy of 0.02mm and a cutting acceleration of 1G. The machine is designed to offer a working life of up to 10 years.
Choose CGJG for your laser cutting needs and experience the best in precision and durability.
The standard configuration of a fiber laser cutting machine is designed to be suitable for 2000W power output.
Laser Source: MAX/RAYCUS 2000W
The cutting head used is the Raytools auto focus cutting head BM111. To create a similar content, the following can be written: The machine is equipped with a BM111 cutting head from Raytools which features auto focus capabilities.
Control System: CYPCUT controller FS2000
Yaskawa Y: 1300W servo motor is commonly used in Japan. It has different power ratings for each axis, with the Y-axis having the highest power at 1300W, followed by the X-axis at 850W, and the Z-axis with the lowest power rating at 400W. These servo motors are known for their reliability and are widely used in various industries.
The cooling system used by S&A/Hanli is a dual-temperature system. In order to create content that closely resembles the original text, I can rearrange the sentence and add more details as follows: A cooling system that operates at dual-temperatures is utilized by S&A/Hanli. This system has been designed to regulate the temperature accordingly, based on the specific cooling requirements, and it meets the demands of modern industries. With its advanced capabilities, this cooling system enables optimal performance and efficiency, resulting in a highly productive output.
Guide rail : PMI guide rail
Rack: APEX /YYC rack
The bed of the machine is made of a heavy sheet that has undergone heat treatment for welding. By rearranging the original content, the following highly similar content is generated: "The machine bed is constructed from a sturdy sheet that has been subject to heat treatment, specifically for welding purposes."
Gantry : Aluminium gantry
Reducer: MOTOVARIO reducer
Automatic lubrication system
Function parameter List | ET3015 | ET4015 | ||
Item | Subitem | |||
Basic parameter | Working area | 3048mm*1524mm | 4000mm*1524mm | |
Max.linkage speed | 100m/min | 100m/min | ||
Performance | Max. acceleration | 1G | 1G | |
Table load bearing | 1000kg | 1200kg | ||
Machine size | 4508*2255*1650mm | 5500*2255*1650mm | ||
Machine weight | 3500kg | 4000kg | ||
Z axis travel | 100mm | 100mm | ||
Positioning accuracy | ±0.05mm | ±0.05mm | ||
Repositioning accuracy | ±0.03mm | ±0.03mm | ||
Φ30mm roundness | ≤0.15mm | ≤0.15mm | ||
□30mm adjacent side dimension | ≤0.06mm | ≤0.06mm | ||
Configuration | Optical system | laser head | WSX/Raytools/Precitec | WSX/Raytools/Precitec |
Laser source | MAX/Raycus/IPG | MAX/Raycus/IPG | ||
mechanical system | Machine bed | Plate welded bed | Plate welded bed | |
Gantry structure | Aviation Aluminum Beam | Aviation Aluminum Beam | ||
X/Y/Z-axis Servo | Yaskawa | Yaskawa | ||
Linear Rails | HIWIN/PMI | HIWIN/PMI | ||
Rack | APEX | APEX | ||
Electrical system | Control system | CypCut | CypCut | |
Display size | 21.5 inches | 21.5 inches | ||
Breaker | France Schneider | France Schneider | ||
Relay | Schneider/ ABB | Schneider/ABB | ||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2 gas control valve | Japan SMC | Japan SMC | ||
N2 gas control valve | Japan SMC | Japan SMC | ||
Machine Details:
| Carbon Steel Welded Machine Bed |
| The Third Generation Aviation Aluminum Beam |
| Raycus/MAX/IPG Laser Source Choose |
| RayTools/Precitec/WSX Cutting Head Choose |
| Taiwan APEX Rack |
| S&A/Hanli Water Chiller Choose |
Industry Applications:
F3015 fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.
Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Cutting Capacity
Product Feature:
1.Carbon Steel Welded Stronger Bed.
2.Value and Accessibility.
3.High Speed High Efficiency.
4.1KW-6KW IPG/RAYCUS/MAX Laser Source.
5.Single Work Table Open Design.
6.Elegant Simple Design Sheet Metal.
7.Independent Control Cabinet.
8.Aviation Aluminum Gantry.
Honor Certificate:
FAQ:
Q1:Where is your factory located?
We are in Jinan city of China, 30 mins from Jinan Yaoqiang airport.
Q2:How can I get a sample to check your quality?
We can cut samples from your design and send to you.
Q3:How long can I expect to get the sample?
Genrally in 3-10 days after laser cutting.
Q4:Packaging & Shipping
Wood case and protection film.
4 sets 3015 Single table in 40 foot container.
Q5:What about the lead time for mass production?
Usually 30 days depends on fiber laser cutting machine type.
Q6:Does your product have warranty service? How long is the warranty period?
2-year warantry for fiber laser cutting machine.
Q7:How to provide technical support to customers?
We provide after sales service and technical training.We committed to provide customers a good purchasing experience.
Q8:How to become your overseas agent?
We are very glad to cooperate with you as our agent, we will provide more preferential policies.
