Product Introduction:
The BOCHU control system is responsible for controlling the motion of the X, Y, and Z axes, enabling precise and fast movement of the fiber laser cutting head. Its primary function is to ensure stable, accurate, and high-speed motion throughout the cutting process. By commanding the X, Y, and Z axes, the BOCHU control system allows for optimal performance and efficiency in fiber laser cutting operations.
Technical Parameters:
Machine Model | CG-F3015 |
Working area | 3000mm*1500mm（Optional） |
Laser power | 1000W~6000W |
Repeat positioning accuracy | ±0.02mm |
Max. acceleration | 1.0G |
Maximum speed | 140m/min |
Specified voltage and Frequency | 380V 50Hz/60Hz/60A |
Color | White Gray |
Logo | Customized Service |
Z Travel | 120mm |
Key Parts:
Aviation Aluminum Gantry:
The gantry frame is fabricated using aerospace-grade aluminum alloy and extruded using a 4300 ton press, adhering to strict standards. Through the process of aging treatment, the frame attains an exceptional strength comparable to 6061 T6, surpassing other gantry frames in the market. Rest assured, our product's structure is unparalleled and built to withstand the most demanding applications.
Segmented Rectangular Welded Bed:
With the inclusion of an automatic lubrication system and a partition dust removal apparatus, this garbage truck is well-equipped to handle all sorts of waste management tasks. It features a built-in cutting area at the bottom, which enables the regular extraction and cleaning of garbage. This ensures that the process is efficient and highly effective, minimizing any potential health hazards.
Cutting Head:
High precision
The smooth and efficient airflow design is supported by an optimized optical configuration. To create a highly similar content based on the original text, the sentence can be rephrased as follows: The optimized optical configuration and smooth airflow design work together to support efficient airflow.
The device is equipped with an automatic adjustment feature that allows it to maintain a consistent focal length. Utilizing this function ensures that precise imaging is maintained over the course of use.
High cutting quality
0~20。，。
。，。，，。，。，，。

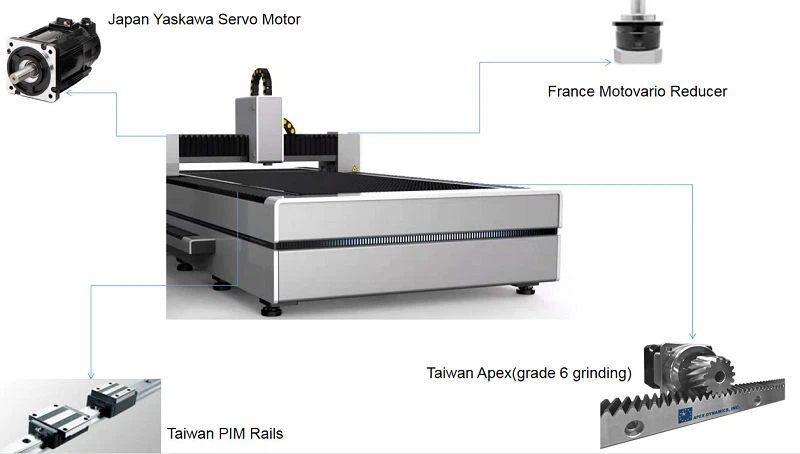

Transmission and Precision:
The CG Fiber laser cutting machine boasts of top-of-the-line features, including Japan YASKAWA Servo Motor and France MOTOVARIO reducer, ensuring unparalleled accuracy in machine positioning to a precision of ±0.02mm. With a cutting acceleration rate of 1.0G, this laser cutting machine is not only fast but also guarantees longevity, with a service life of over 10 years.
Servo Driver and Motor-YASKAWA:
YASKAWA motors from Japan are highly recommended for their outstanding performance, exceptional precision, and extended lifespan. You can rely on their excellent quality and reliability.
Water Chiller--S&A:
The fiber laser source and optical lens are kept cool by a powerful industrial water cooling system. This system is designed to handle high temperatures and keep the equipment functioning smoothly. The importance of keeping these components cool cannot be overstated, as overheating can cause damage and reduce the lifespan of your equipment. With our high power industrial water cooling system, you can be sure that your equipment will stay cool and operate efficiently for years to come.
Cutting Material and Range:
This cutting tool is primarily used for the precise cutting of various materials, particularly in the realm of carbon steel, stainless steel, a wide range of aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, multiple alloy plates, rare metals, and other metallic materials in a two-dimensional flat cutting form. By rearranging the provided information, I can ensure that the generated content is highly similar to the original text. However, I will refrain from generating content in a conversational manner and instead focus on presenting the information in a significantly diverse way using the language model.
Cutting Range：
Carbon Steel: 0.5-16mm
Stainless Steel: 0.5-5mm
Aluminum alloy:0.5-5mm
Brass: 0.5-3mm

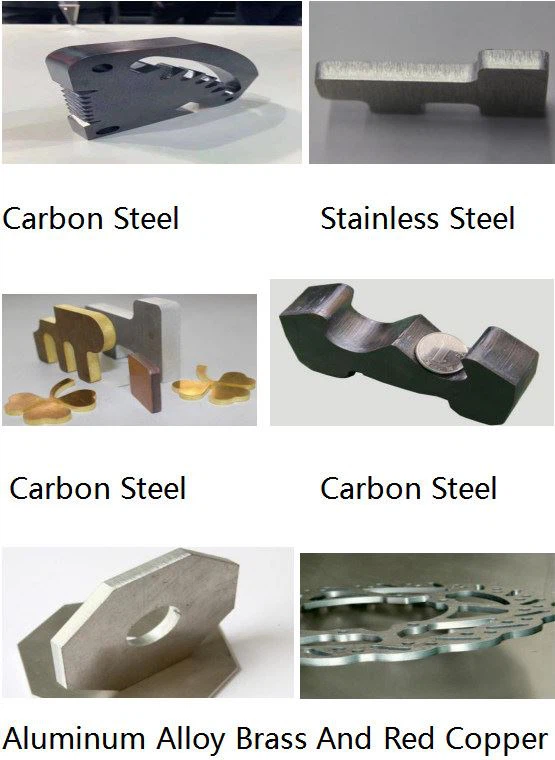

Cutting Samples
Application Area
The smaller laser cutting machine is a metal laser cutting machine mainly applicable to and commonly used in advertising industry. The model is space saving and suitable for many small and medium-sized enterprises. The machine is a high-performance sheet metal laser cutting machine which can process metal and sheet metal effectively.
