For motion along all axes, the machine kit includes industrial servo motor Yaskawa (Japan), its accuracy and reliability ensure uninterrupted operation and consistent high quality products.
Description
Technical Parameters
CGJG Laser is a renowned manufacturer of top-quality laser equipment, known for its innovative and cutting-edge technology. One of its star products is the 3015H Series open type fiber laser cutting machine, specifically designed for high-precision sheet metal processing. With the ability to cut various metals, including stainless steel, carbon steel, and brass, this machine is a popular choice among customers.
The machine boasts an elegant appearance and easy operation, making it immensely popular among users. The fiber laser power options range from 1KW to 6KW, ensuring that the machine has a substantial cutting ability, stable performance, and a lifespan of over 100,000 hours. Customers can choose from a selection of top laser sources, including IPG, RAYCUS, or MAX.
CGJG fiber laser cutting machines come equipped with the best motors from leading brands such as Yaskawa from Japan, Motoreducer from France, and Taiwan's APEX rack. Such premium parts, along with the machine's impressive positioning accuracy of 0.02mm, and cutting acceleration of 1G, allow for a working life of up to 10 years.
The CGJG fiber laser cutting machine is an excellent option for those looking for reliable, top-of-the-line laser equipment designed to meet their needs accurately.
Product Feature:
1.Carbon Steel Welded Stronger Bed.
2.Value and Accessibility.
3.High Speed High Efficiency.
4.1KW-6KW IPG/RAYCUS/MAX Laser Source.
5.Single Work Table Open Design.
6.Elegant Simple Design Sheet Metal.
7.Independent Control Cabinet.
8.Aviation Aluminum Gantry.
Technical Parameter:
The Fiber Laser Cutting Machine Configuration is designed to be suitable for use with 1000W to 1500W power levels. This standard configuration ensures optimal performance and consistent results, making it an ideal choice for various cutting applications. By rearranging the original content, we can convey the same message in a different manner while retaining the essence of the information. As a result, the generated content provides a fresh perspective on the machine configuration and its capabilities.
Laser Source: MAX/RAYCUS 1000W/1500W
The cutting head that is being used is the Raytools auto-focus cutting head BM110. To provide similar information, the content can be rephrased as follows: The current cutting process is carried out using the cutting head known as the BM110, which is an automatically focused cutting head produced by Raytools.
Control System: CYPCUT controller FS2000
The servo motor provided is a Yaskawa Y series with power ratings of 850W for the Y-axis, 850W for the X-axis, and 400W for the Z-axis.
We have a cooling system that can maintain dual-temperatures, thanks to the S&A/Hanli system. Our system is designed to keep different areas at different temperature levels to suit specific needs. The cooling system is efficient and reliable, ensuring consistent performance at all times. Whether you need to keep your work area cool or maintain a specific temperature for your products, our dual-temperature cooling system has got you covered. With our system, you can enjoy the benefits of a versatile and high-performance cooling solution that can meet all your needs.
Guide rail : PMI guide rail
Rack: APEX /YYC rack
The machine bed is made of heavy sheets that undergo heat treatment and welding to ensure its durability and strength.
Gantry : Aluminium gantry
Reducer: MOTOVARIO reducer
Automatic lubrication system
Computer: Industry computer
Function parameter List | 3015H | 4015H | ||
Item | Subitem | |||
Basic parameter | Working area | 3048mm*1524mm | 4000mm*1524mm | |
Max.linkage speed | 100m/min | 100m/min | ||
Performance | Max. acceleration | 1G | 1G | |
Table load bearing | 1000kg | 1200kg | ||
Machine size | 4508*2255*1650mm | 5500*2255*1650mm | ||
Machine weight | 3500kg | 4000kg | ||
Z axis travel | 100mm | 100mm | ||
Positioning accuracy | ±0.05mm | ±0.05mm | ||
Repositioning accuracy | ±0.03mm | ±0.03mm | ||
Φ30mm roundness | ≤0.15mm | ≤0.15mm | ||
□30mm adjacent side dimension | ≤0.06mm | ≤0.06mm | ||
Configuration | Optical system | laser head | WSX/Raytools/Precitec | WSX/Raytools/Precitec |
Laser source | MAX/Raycus/IPG | MAX/Raycus/IPG | ||
mechanical system | Machine bed | Plate welded bed | Plate welded bed | |
Gantry structure | Aviation Aluminum Beam | Aviation Aluminum Beam | ||
X/Y/Z-axis Servo | Yaskawa | Yaskawa | ||
Linear Rails | HIWIN/PMI | HIWIN/PMI | ||
Rack | APEX | APEX | ||
Electrical system | Control system | CypCut | CypCut | |
Display size | 21.5 inches | 21.5 inches | ||
Breaker | France Schneider | France Schneider | ||
Relay | Schneider/ ABB | Schneider/ABB | ||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2 gas control valve | Japan SMC | Japan SMC | ||
N2 gas control valve | Japan SMC | Japan SMC | ||
Machine Details:
Machine bed is welded with 12-16mm thick carbon structural steel dislocation honeycomb structure, machined after stress relief and annealing, then vibration-aging and natural aging treatment, so that the welding and machining stress can be completely eliminated, to ensure excellent rigidity and high precision of the bed, reducing the machining error caused by the vibration of the bed.
The automatic oil lubrication system, automatically lubricates the guide rail, slider, rack and gear. It can be set by the time and travelled distance. All running parts with oil, prolong their working life, effectively prolongs the life of the machine and reduces wear.

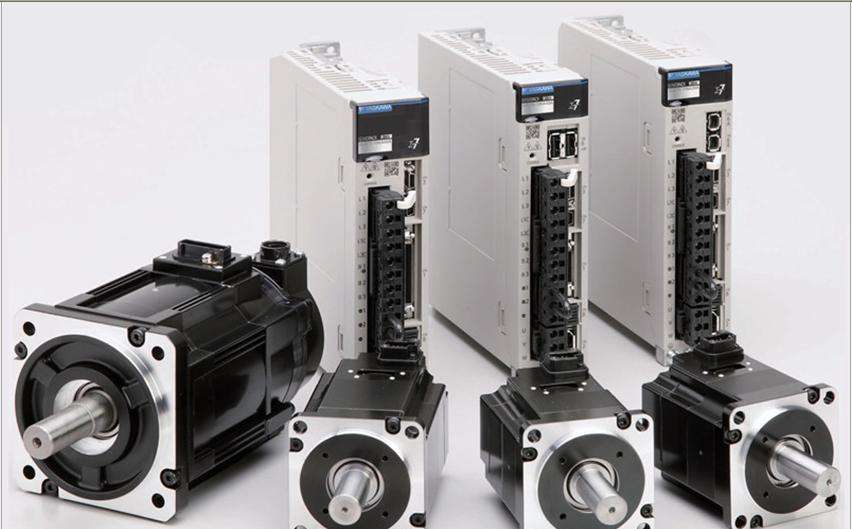

Japan Yasukawa Servo System

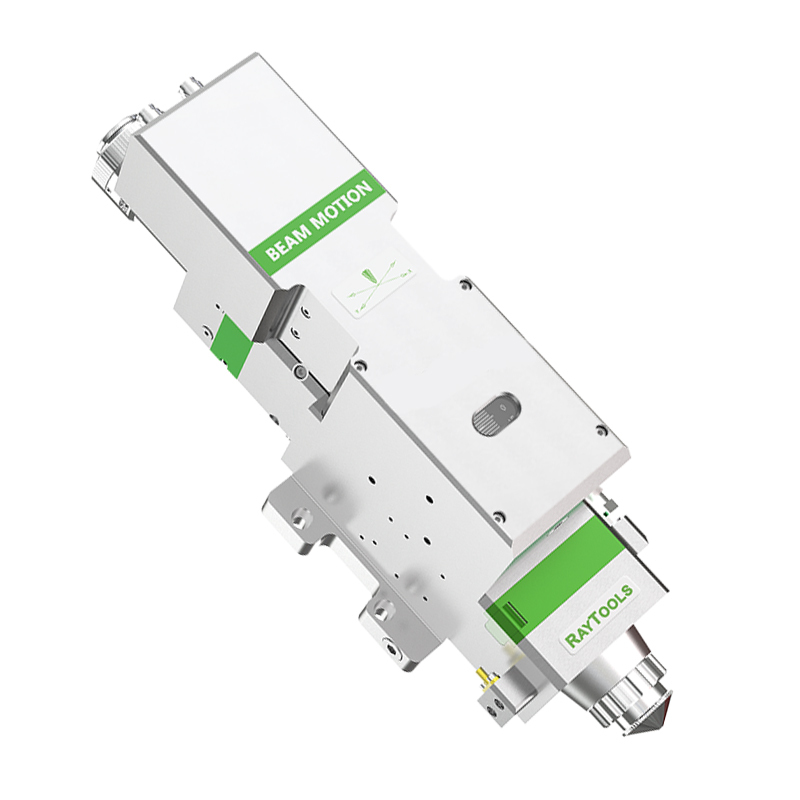

Fiber Laser Cutting Head
You can optionally match the Raytools laser head, the independent height controller BCS100, can handle unlatten surface, built-in water cooling system, ensuring that the laser head is stable. Laser head with autofocus system.

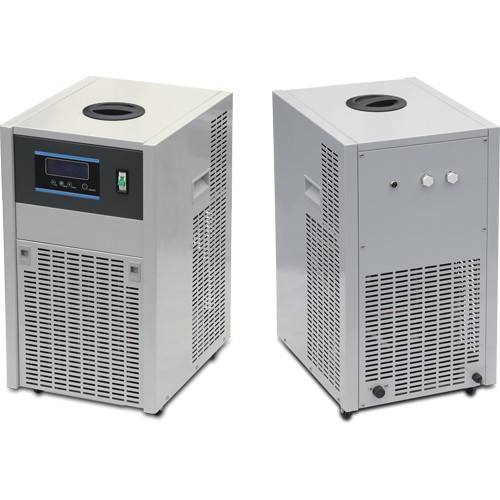

Water chiller
Using the famous domestic intelligent chiller brand, through the deionization system, you can understand the water pressure and water quality in real time, and equipped with an alarm system to ensure the timeliness of maintenance and greatly improve the service life of the laser.

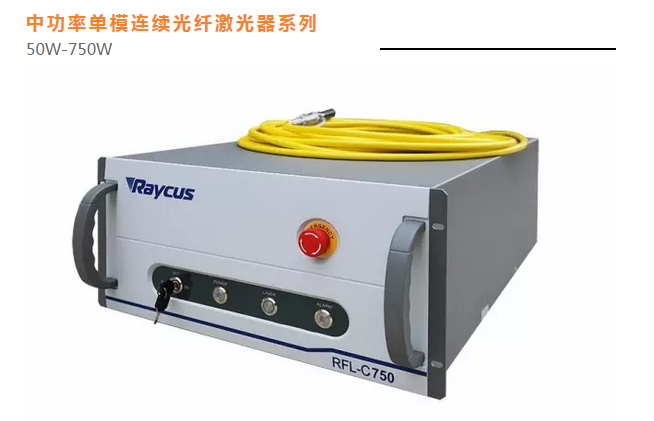

Raycus Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion
efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)
Industry Applications:
F3015 fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.
Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Cutting Capacity
Honor Certificate:
FAQ:
Q1:Where is your factory located?
We are in Jinan city of China, 30 mins from Jinan Yaoqiang airport.
Q2:How can I get a sample to check your quality?
We can cut samples from your design and send to you.
Q3:How long can I expect to get the sample?
Genrally in 3-10 days after laser cutting.
Q4:Packaging & Shipping
Wood case and protection film.
4 sets 3015 Single table in 40 foot container.
Q5:What about the lead time for mass production?
Usually 30 days depends on fiber laser cutting machine type.
Q6:Does your product have warranty service? How long is the warranty period?
2-year warantry for fiber laser cutting machine.
Q7:How to provide technical support to customers?
We provide after sales service and technical training.We committed to provide customers a good purchasing experience.
Q8:How to become your overseas agent?
We are very glad to cooperate with you as our agent, we will provide more preferential policies.
