CGJG Laser is a top-notch laser equipment manufacturer. Among its amazing lineup is the E3015 Series open type fiber laser cutting machine, which is specifically designed for high-precision sheet metal processing. It is capable of cutting a variety of metals such as stainless steel, carbon steel, and brass. Customers appreciate its elegant appearance and user-friendly operation.
The fiber laser cutting machine's laser source comes in three options: IPG/RAYCUS/MAX, and the fiber laser power can range from 1KW to 6KW. With this cutting-edge technology, the machine can handle big cutting tasks with exceptional performance and a lifespan of over 100,000 hours.
The CGJG fiber laser cutting machine also boasts of high-quality components such as Japanese Yaskawa motor, French Motoreducer, and Taiwan APEX rack. These features allow for a positioning accuracy of up to 0.02mm and a cutting acceleration of 1G, making it highly efficient in delivering impeccable results. Its working life is outstanding, with up to ten years of service.
If you're looking for a reliable and top-performing fiber laser cutting machine, the CGJG E3015 series is a go-to choice.
The fiber laser cutting machine configuration is standard and is suitable for a power capacity of 2000W. You may produce a similar content by rephrasing the given text, making sure that the resulting text is still anchored to the information present in the original text.
Laser Source: MAX/RAYCUS 2000W
The auto focus cutting head BM111 from Raytools is designed for precision cutting operations. With its advanced technology, this cutting head ensures optimal performance and accuracy. By rearranging the provided content, a highly similar version can be generated.
Control System: CYPCUT controller FS2000
Yaskawa Y servo motors are widely utilized in Japan and offer different power options. The Yaskawa Y servo motor series includes the Y1300W, Y1300W, X850W, and Z400W models. These servo motors are highly efficient and provide superior performance in various applications. With their power ratings, the Yaskawa Y servo motors ensure high torque and precise control, making them suitable for a wide range of industrial applications. Whether you need a motor with 1300W, 850W, or 400W of power, Yaskawa Y servo motors are a reliable choice.
The S&A/Hanli cooling system is a dual-temperature system. It offers a unique solution for managing different temperature requirements simultaneously. By rearranging the given content, a similar yet distinct description can be generated.
Discover the S&A/Hanli cooling system, an innovative solution designed to meet dual-temperature needs. This advanced system ensures efficient management of varying temperature requirements, all within one unit. Offering a versatile and practical approach, it revolutionizes cooling technology.
Guide rail : PMI guide rail
Rack: APEX /YYC rack
The machine bed is made of a heat-treated sheet and is welded together to create a heavy and sturdy base that can withstand a lot of wear and tear. This design ensures that the machine stays stable during operation and helps to reduce vibration and noise. The heat treatment helps to make the sheet more durable and resistant to deformation over time. Overall, the machine bed provides a solid foundation for the machine, which is essential for achieving accurate and consistent results.
Gantry : Aluminium gantry
Reducer: MOTOVARIO reducer
Automatic lubrication system
Function parameter List | F3015 | F4015 | ||
Item | Subitem | |||
Basic parameter | Working area | 3048mm*1524mm | 4000mm*1524mm | |
Max.linkage speed | 100m/min | 100m/min | ||
Performance | Max. acceleration | 1G | 1G | |
Table load bearing | 1000kg | 1200kg | ||
Machine size | 4508*2255*1650mm | 5500*2255*1650mm | ||
Machine weight | 3500kg | 4000kg | ||
Z axis travel | 100mm | 100mm | ||
Positioning accuracy | ±0.05mm | ±0.05mm | ||
Repositioning accuracy | ±0.03mm | ±0.03mm | ||
Φ30mm roundness | ≤0.15mm | ≤0.15mm | ||
□30mm adjacent side dimension | ≤0.06mm | ≤0.06mm | ||
Configuration | Optical system | laser head | WSX/Raytools/Precitec | WSX/Raytools/Precitec |
Laser source | MAX/Raycus/IPG | MAX/Raycus/IPG | ||
mechanical system | Machine bed | Plate welded bed | Plate welded bed | |
Gantry structure | Aviation Aluminum Beam | Aviation Aluminum Beam | ||
X/Y/Z-axis Servo | Yaskawa | Yaskawa | ||
Linear Rails | HIWIN/PMI | HIWIN/PMI | ||
Rack | APEX | APEX | ||
Electrical system | Control system | CypCut | CypCut | |
Display size | 21.5 inches | 21.5 inches | ||
Breaker | France Schneider | France Schneider | ||
Relay | Schneider/ ABB | Schneider/ABB | ||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2 gas control valve | Japan SMC | Japan SMC | ||
N2 gas control valve | Japan SMC | Japan SMC | ||

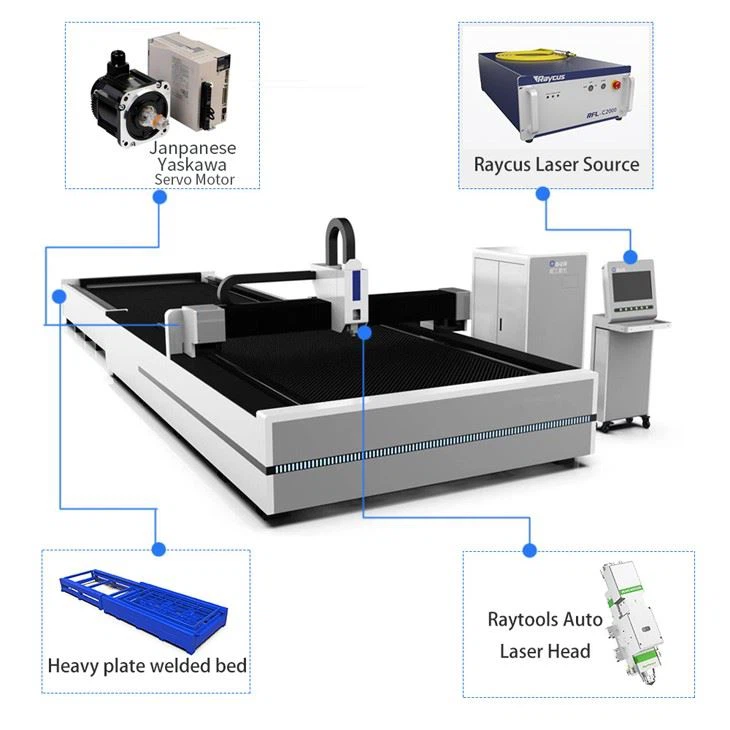

Machine Details:
| Carbon Steel Welded Machine Bed |
| The Third Generation Aviation Aluminum Beam |
| Raycus/MAX/IPG Laser Source Choose |
| RayTools/Precitec/WSX Cutting Head Choose |
| Taiwan APEX Rack |
| S&A/Hanli Water Chiller Choose |
Industry Applications:
F3015 fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.
Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Cutting Capacity
Product Feature:
1.Carbon Steel Welded Stronger Bed.
2.Value and Accessibility.
3.High Speed High Efficiency.
4.1KW-6KW IPG/RAYCUS/MAX Laser Source.
5.Single Work Table Open Design.
6.Elegant Simple Design Sheet Metal.
7.Independent Control Cabinet.
8.Aviation Aluminum Gantry.
Honor Certificate:
FAQ:
Q1:Where is your factory located?
We are in Jinan city of China, 30 mins from Jinan Yaoqiang airport.
Q2:How can I get a sample to check your quality?
We can cut samples from your design and send to you.
Q3:How long can I expect to get the sample?
Genrally in 3-10 days after laser cutting.
Q4:Packaging & Shipping
Wood case and protection film.
4 sets 3015 Single table in 40 foot container.
Q5:What about the lead time for mass production?
Usually 30 days depends on fiber laser cutting machine type.
Q6:Does your product have warranty service? How long is the warranty period?
2-year warantry for fiber laser cutting machine.
Q7:How to provide technical support to customers?
We provide after sales service and technical training.We committed to provide customers a good purchasing experience.
Q8:How to become your overseas agent?
We are very glad to cooperate with you as our agent, we will provide more preferential policies.
