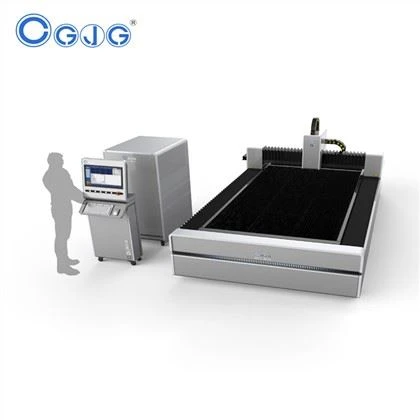

1500w Metal Fiber Laser Cutting Machine

Product Introduction:

Our laser cutting machine is equipped with a top-notch fiber laser source that has been imported for its exceptional performance. This advanced source ensures that the laser spot is small, resulting in high efficiency and speed during cutting operations. As a result, you can expect excellent cutting quality with minimal deformation and a smooth, beautiful appearance. The best part is that the fiber laser source has an impressive service life of up to 100,000 hours, providing long-lasting reliability.

Technical Parameters:

The standard configuration of this fiber laser cutting machine is compatible with power ratings of 1000W and 1500W. To produce similar content, the information in the original text can be rephrased. For instance, this fiber laser cutting machine is built to operate with power settings of either 1000W or 1500W, and it comes with a standard configuration that meets these requirements.

Laser Source: MAX/RAYCUS 1000W/1500W

Raytools BM110 is an automatic focus cutting head designed for precision cutting. With its advanced technology, it provides accurate and efficient cutting performance. You can rely on the Raytools BM110 to deliver excellent results every time. Experience the benefits of this cutting-edge tool and take your cutting capabilities to the next level.

Control System: CYPCUT controller FS2000

The servo motor setup consists of powerful Yaskawa motors from Japan, including a Y:850W motor for the Y-axis, another Y:850W motor for the X-axis, and a Z:400W motor for the Z-axis. These high-quality servo motors ensure high precision and efficient performance in any industrial setting.

The cooling system for dual-temperature is provided by S&A/Hanli. With their advanced technology, they provide efficient and effective cooling solutions for various applications. Their expertise allows them to create systems that can handle different temperature requirements, making them a preferred choice for many industries. If you are in need of a reliable and high-quality dual-temperature cooling system, S&A/Hanli is the ideal option that you should consider.

Guide rail : PMI guide rail

Rack: APEX /YYC rack

The machine bed is made of a heat-treated heavy sheet for welding. It has been designed to withstand high temperatures and provide exceptional durability. The process of heat treatment ensures that the bed is strong and resistant to wear and tear. Thanks to its sturdy construction, the machine bed offers stability and precise alignment for efficient welding operations.

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Guide rail gear rack protection cover

stainless steel plate and nylon flexible tube

ABS drag chain

air tube ,electric wire, laser fiber

PMI  linear guide and gear rack

SMC Pneumatic system

Control System

cypcut 2000

1:Recognized by over 300 domestic and foreign laser companies; 2:Match up with wireless DSP controller
3:Stable operation on over 20000 sets cutting machine; 4:Able to complete from the design, draw and process; 5:Simple, efficient,
powerful and reliable
6:Wireless DSP remote control

fiber laser source

Raycus / MAX

1.direct control of all the fiber laser functions:
2.synchronized control of the laser source
3.overall power control

Auto oil lubrication system

After using some time, Rack & Pinion and guide rails always need maintained by inject oils. Make sure the machine keep moving
fluently and in good precision

Driving System.

Japan Yaskawa Servo motor1:Servo Motor with high precision; 2:Able to control cutting speed and position; 3:Stable running, lower speed
without vibration phenomenon; 4:Better overload capacity

For cutting a variety of materials, mainly used in carbon steel, stainless steel, a variety of aluminum alloys, brass, copper, aluminum, pickling board, galvanized plate, silicon wafers, electrolytic plates, titanium alloys, manganese alloys, a variety of alloy plates, rare metals and other metal materials of two-dimensional flat cutting.

Cutting Range：

Carbon Steel: 0.5-16mm

Stainless Steel: 0.5-5mm

Aluminum alloy:0.5-5mm

Brass: 0.5-3mm

Cutting Samples

Application Area

Widely used in household appliance, sheet metal chassis frame, hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries.
