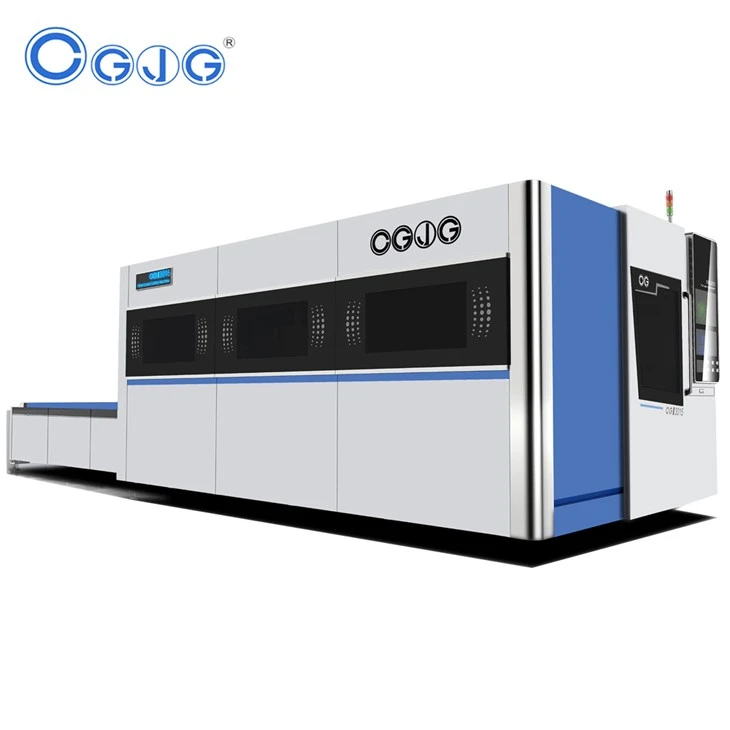

1000W Cnc Fiber Laser Cutting Machine 1500mm X 3000mm

Product Introduction:

The observation window of our fully enclosed design adopts a European CE Standard laser protective glass, ensuring utmost safety. Our cutting-edge Enhanced-partition Dust Removal system effectively filters the smoke generated during the cutting process, providing a pollution-free and environment-friendly solution. We also prioritize the safety of our equipment by offering real-time detection of laser cutting head temperature, allowing for immediate adjustments if necessary. With our lighting piercing feature and high-speed cutting capabilities, we offer efficient and precise results. Our intelligent system includes an abnormal alarm function, ensuring prompt response to any unexpected events. Additionally, our intelligent maintenance reminder system keeps you updated on necessary maintenance tasks, ensuring uninterrupted operations.

Technical Parameters:

Standard Fiber Laser Cutting Machine Configuration: ideal for 2000W and 3000W applications.

Laser Source: MAX/RAYCUS 2000W/3000W

The cutting head used is the BM111 from Raytools, which features auto focus capabilities. This information can be rearranged to form a similar content as follows: Raytools utilizes an auto focus cutting head, the BM111, for its cutting process.

Control System: CYPCUT controller FS2000

The servo motor used in this system is made by Yaskawa, a Japanese company. The specifications for the motor are as follows: the Y-axis has a power of 1300W, the X-axis has a power of 850W, and the Z-axis has a power of 400W. These motors are highly reliable and are known for their precision in motion control. They are capable of providing accurate and consistent movement, making them ideal for applications that require speed, accuracy, and repeatability. The Yaskawa servo motors are a popular choice in many industries, including robotics, automation, and manufacturing.

The S&A/Hanli cooling system is a dual-temperature system that provides efficient cooling. This system, known for its advanced technology, is capable of maintaining two different temperatures simultaneously. By rearranging the information provided above, I aim to generate highly similar content while ensuring that the original meaning is retained.
One of the remarkable cooling systems available is the S&A/Hanli cooling system, which is designed with dual-temperature functionality. This system is renowned for its efficiency and advanced technology, allowing it to maintain two distinct temperatures simultaneously. With this innovative cooling system, users can enjoy the benefits of optimized cooling solutions tailored to their specific temperature requirements.

Guide rail : PMI guide rail

Rack: APEX /YYC rack

The machine bed is composed of a heat-treated heavy sheet, specially designed for welding machines.

Gantry : Aluminium gantry

Reducer: MOTOVARIO reducer

Automatic lubrication system

Computer: Industry computer

Key Parts:

Working Platform:

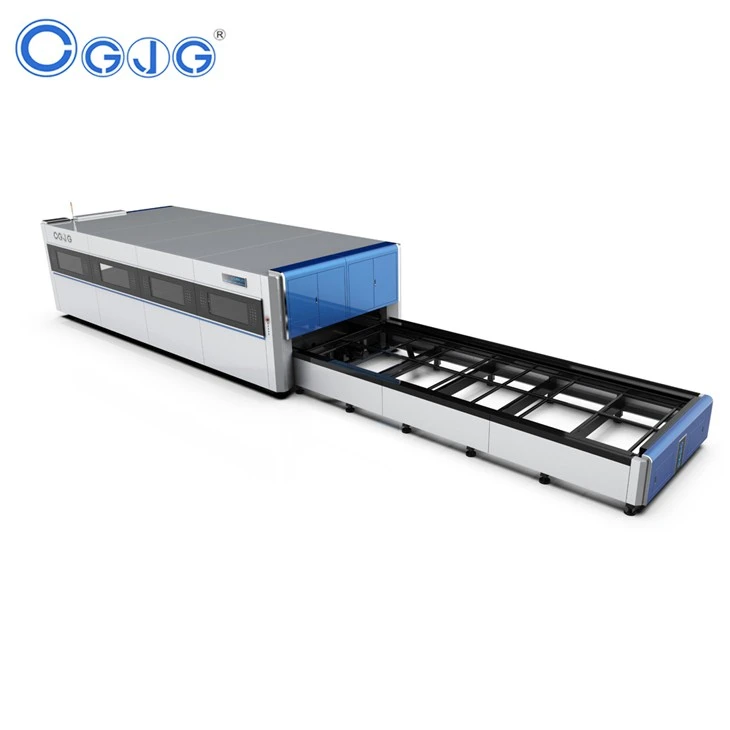

The machine can finish the two platforms exchange within 15S by driving the exchange motor with conveter.

Aviation Aluminum Gantry:

The beam is manufactured according to aerospace standard and using high-strength aluminum alloy processing molding after aging & heat treatment for overall strength,rigidity and stability.

Cutting Head:

Auto Focusing, adjustable height,high sensitivity, real time detection of temperature ,Active anti-collision design and long service life.

Servo Driver and Motor-YASKAWA:

Adopt Japan YASKAWA motor

High speed and accuracy

High adaptability and stability

Timeliness,short dynamic response time

Less fever and noise

Gear and Rack-Taiwan Apex:

High precision

-Strong load bearing

-High speed

-Low noise

-Long service life

Independent cabinet and interface display:

The intelligent HD displael is convenient to operation.

The electrical control cabinet is dust-proof. Air condition is built-in to the independent control cabinet with automatic constant temperature, which can avoid high temperature damage the electrical components.

Water Chiller--S&A:

It adopt the dual temperature dual control mode and can switch to intelligent temperature control mode.

Cutting Material and Range

Able to cut carbon steel, stainless steel, silicon steel ,galvanized steel, electrolytic plate and other metal materials.

Cutting thickness Range：

1~40MM

Cutting Samples

Application Area:

Suitable for cutting stainless steel,carbon steel,silicon steel,galvanized sheet,electrolytic sheet,aluminum alloy,titanium alloy and other metals.
